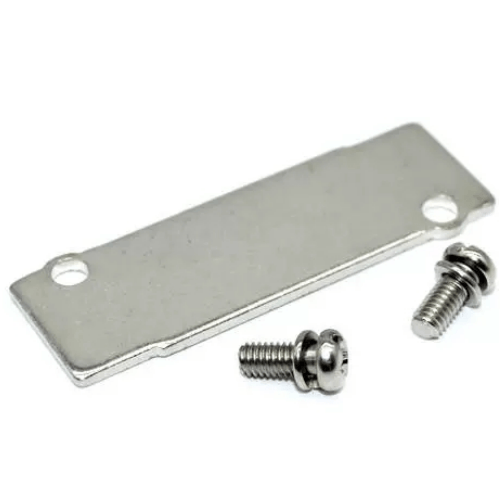

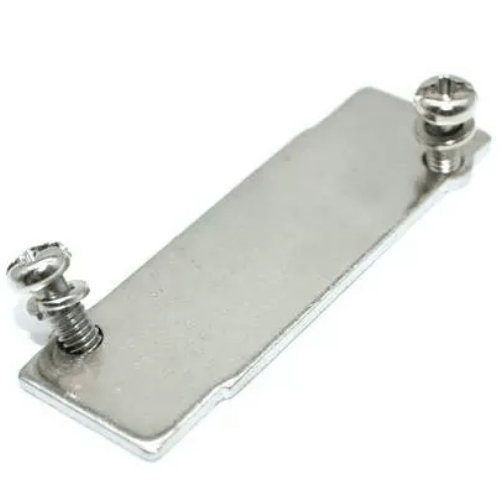

Airtac P-7V Blank Plate Repair Kit P-7V300M-R2
2. Internal exhaust structure collects residual air and centrally discharges through R/S ports;
3. Aluminum alloy die-cast body with optimized internal cavity design to enhance flow capacity;
4. Available in threaded or quick-connect versions, compatible with base-mounted valve group integration for space-saving installation.
Category: Cover Plate | Brand: AirTAC | Series: P-7V
AirTAC P-7V Blind Plate Maintenance Kit P-7V300M-R2 Technical Details
- Full model designation: P-7V300M-R2 (Rev.2)
- Compatible series: P-7V standard cylinder series
- Seal types included: 4x dynamic seals, 2x static gaskets
- Material composition:
- Primary seals: HNBR rubber (hydrogenated nitrile)
- Backup rings: Glass-filled PTFE
- Springs: SUS304 stainless steel
- Wear bands: Polyurethane-coated guides
- Pressure rating: 0.05-1.2 MPa operational
- Temperature tolerance: -30℃ to 120℃ intermittent
- Weight: 285g ±5% (including packaging)
- Dimensions: 120mm(L) × 85mm(W) × 25mm(H)
- Storage conditions: 5-35℃, RH ≤75% non-condensing
- Compliance: RoHS 2011/65/EU compliant
Complete overhaul kit for P-7V series cylinder end cap maintenance, containing precision-matched components to restore factory-grade sealing performance. Features abrasion-resistant HNBR compounds for extended service intervals in high-cycle applications. Includes specialized installation tools: alignment jig and seal insertion tool.
- Recommended replacement interval: 5 million cycles or 24 months
- Critical for preventing pneumatic leakage in vertical mounting configurations
- Mandatory after cylinder disassembly for contamination removal
- Essential maintenance following pneumatic system overpressure events
Installation protocol:
Lubricate seals with PZ-2 grease (included) prior to assembly.
Torque end plate bolts in crisscross pattern to 2.5N·m ±10%.
Perform 50 test cycles before returning to service.
| Property | Property Value |
|---|---|
| sku | P-7V300M-R2 |
