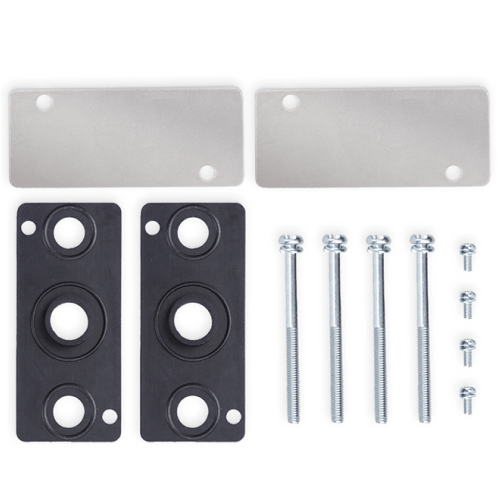

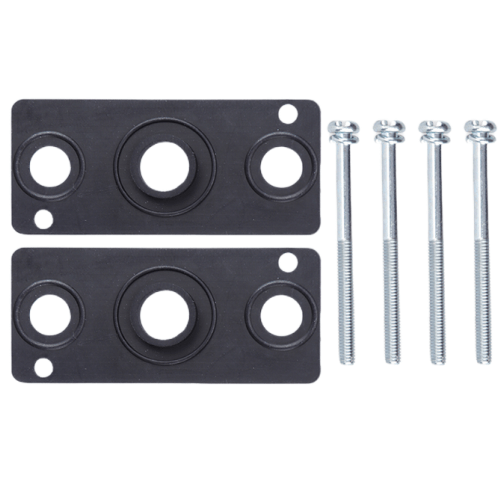

Airtac P-ESV Blind Cover P-ESV200M-R2
1. Sleek exterior design with compact structural configuration;
2. Mounting interface dimensions comply with ISO 55991 international standard;
3. Proprietary sealing components ensure high flow capacity and extended service life;
4. Series 200/300/400 enable reconfiguration between internal pilot, external pilot, and pneumatic control valve modes through directional adjustment of sealing assemblies;
5. Requires base mounting (available in single-unit or modular multi-unit configurations), supporting flexible multi-valve combinations;
6. Bases feature diversified pneumatic porting and mounting options for enhanced adaptability;
7. Integrated exhaust throttling functionality in Series 200/300/400 bases eliminates need for external throttle valves.
Category: Cover Plates | Brand: AIRTAC | Series: P-ESV
AirTAC P-ESV200M-R2 Blind Cover Technical Specifications
- Model: P-ESV200M-R2
- Type: Blind cover for ESV series cylinders
- Material: High-strength aluminum alloy (anodized finish)
- Compatible cylinder bore: Φ200mm
- Mounting type: Through-hole screw fixation
- Surface hardness: HV 120-140
- Temperature resistance: -20℃ to 150℃
- Pressure rating: 0.05-1.0 MPa
- Weight: 2.85 kg ±1%
- Dimensions: 220mm(Ø) × 42mm(H)
- Seal type: Integrated NBR/FKM dual-material gasket
- Corrosion protection: MIL-STD-810G salt spray compliant
- Mounting torque: 35-40 N·m (recommended)
Heavy-duty blind cover engineered for sealing ESV series large-bore pneumatic cylinders. Features precision-machined grooves for perfect alignment and leak prevention. The hybrid sealing system combines NBR elasticity with FKM chemical resistance, suitable for harsh industrial environments. Includes pre-lubricated bushings for maintenance-free operation.
- Automotive production line clamping systems
- Steel mill cylinder maintenance kits
- High-torque rotary actuators
- Offshore platform pneumatic systems
- Plastic injection molding machines
Installation note:
Apply thread locker (LOCTITE 243 recommended) on mounting screws.
Perform torque check after 24hrs of initial operation. Avoid direct
impact during handling - use nylon slings for Ø200+mm models.
