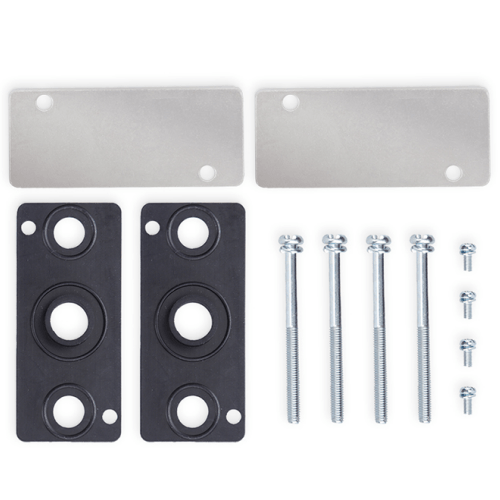

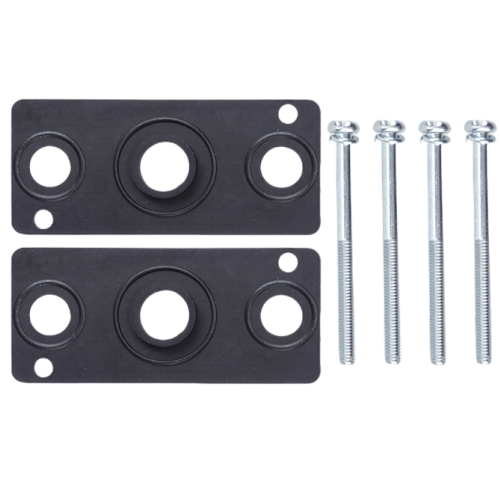

Airtac P-ESV Blind Cover P-ESV400M-R2
1. Sleek exterior design with compact structural configuration;
2. Mounting interface dimensions comply with ISO 55991 international standard;
3. Proprietary sealing components ensure high flow capacity and extended service life;
4. Series 200/300/400 enable reconfiguration between internal pilot, external pilot, and pneumatic control valve modes through directional adjustment of sealing assemblies;
5. Requires base mounting (available in single-unit or modular multi-unit configurations), supporting flexible multi-valve combinations;
6. Bases feature diversified pneumatic porting and mounting options for enhanced adaptability;
7. Integrated exhaust throttling functionality in Series 200/300/400 bases eliminates need for external throttle valves.
Category: Cover Plates | Brand: AIRTAC | Series: P-ESV
AirTAC P-ESV400M-R2 Blind End Cover Technical Details
- Model: P-ESV400M-R2
- Type: Cylinder end cover (blind type)
- Compatible series: ESV standard cylinders
- Material: Aluminum alloy (anodized surface)
- Bore size compatibility: Ø40mm cylinders
- Port size: 2x M10x1.5 threaded ports
- Pressure rating: 0.05-1.0 MPa
- Operating temperature: -10℃ to 100℃
- Seal material: HNBR rubber
- Surface hardness: HV0.3 ≥200
- Weight: 0.68kg ±2%
- Dimensions: 82mm(L) × 40mm(W) × 40mm(H)
- Protection class: IP54 (standard sealing)
- Mounting: Snap-fit with retaining rings
Robust end closure solution designed for ESV series pneumatic cylinders, featuring dual-port design for optional sensor mounting. The precision-machined surface ensures airtight sealing while the anodized finish provides corrosion resistance in humid environments. Includes integrated buffer chambers for smooth piston deceleration.
- Automated assembly line cylinder terminals
- Plastic injection molding machine actuators
- Material handling systems in logistics
- Food processing equipment (HNBR seals comply with FDA standards)
- Cleanroom automation setups
- Align ports vertically downward in dusty environments
- Apply silicone-free lubricant on seals during maintenance
- Use torque wrench (12-15N·m) for sensor port accessories
- Replace buffer seals every 500,000 cycles in high-speed applications
Critical note: Always pair with matching ESV cylinder series - incompatible with older EV/ADN models. For vacuum applications (-0.1MPa), use specified vacuum-grade seals.
