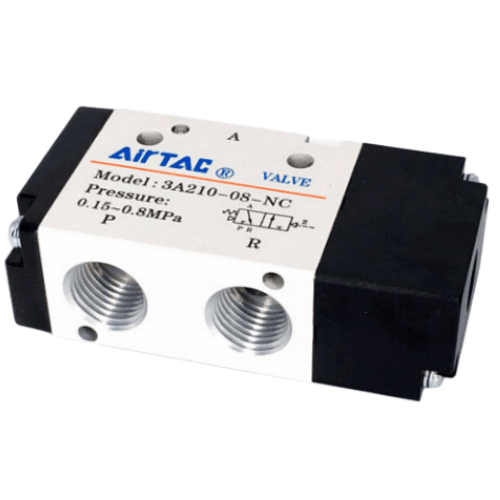

Airtac 3A200 Pneumatic Control Valve 3A210-06NC
2. Double pneumatic pilot design with memory function;
3. Precision-machined internal bores with special surface treatment deliver low friction resistance, minimal actuation pressure, and extended service life;
4. Oil-free lubrication system requiring no maintenance;
5. Multi-position mounting capability for flexible installation and operation;
6. Compatible with base manifold valve blocks to optimize space utilization.
Category: Pneumatic Control Valves, Brand: AirTAC, Series: 3A200
AirTAC 3A210-06NC Pneumatic Control Valve Specifications
- Model: 3A210-06NC
- Type: 5/3-way closed center (air-piloted operation)
- Port size: PT1/4 (G1/8 adapter compatible)
- Operating pressure: 0.15–1.0 MPa
- Flow capacity: 750 L/min (ANR)
- Actuation pressure: ≥0.3 MPa
- Response time: ≤50 ms
- Weight: 320g ±5% (with fittings)
- Dimensions: 68mm(L) × 52mm(W) × 76mm(H)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -10℃ to 120℃ (with high-temp seals)
- Port thread depth: 10mm (double O-ring sealing)
- Cycle life: ≥10 million operations
High-flow pneumatic directional valve with triple position control, featuring symmetrical spool design for balanced pressure distribution. The aluminum alloy body with hard anodized coating resists chemical corrosion and mechanical wear. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality standard.
- Automated assembly line clamping systems
- Plastic injection molding machine actuators
- CNC tool changers with mid-position hold
- Material handling vacuum generators
- Test bench pressure sequencing
Installation guidelines:
Mount with vibration-damping brackets in environments exceeding 15Hz.
Lubricate pilot ports with ISO VG32 pneumatic oil if used in high-cycle
applications (>5Hz switching). Maintain 20mm clearance below valve for
exhaust airflow dispersion.
| Property | Property Value |
|---|---|
| sku | 3A210-06NC |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/8 |
