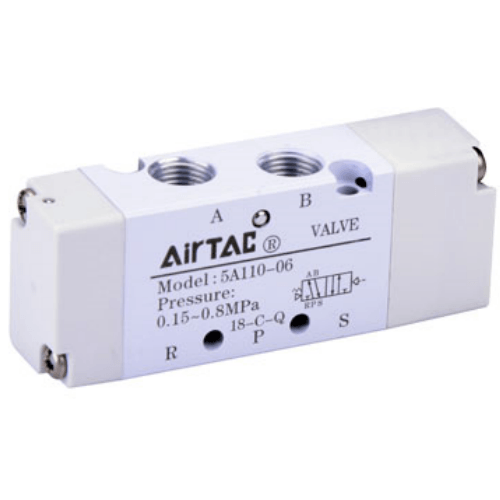

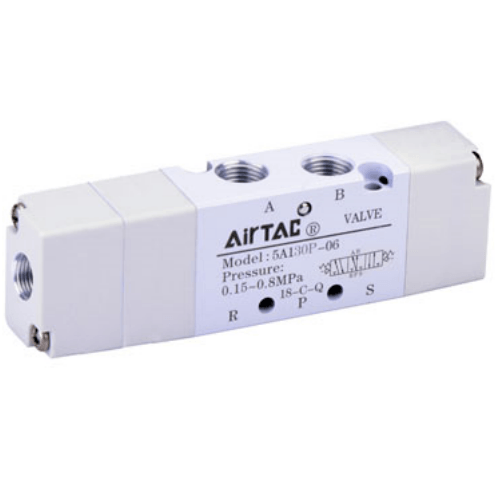

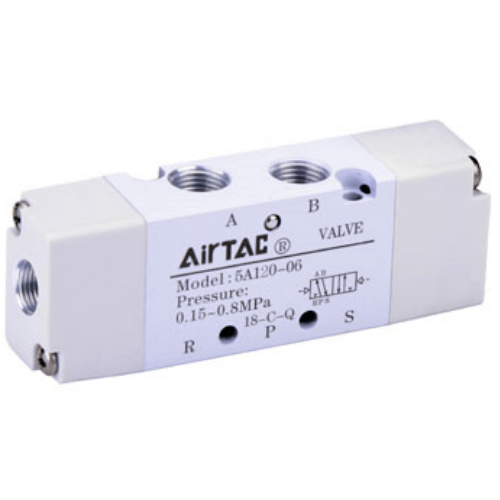

Airtac 5A Pneumatic Control Valve 5A230C06
2. 3-position pneumatic valve offers three center position functions (exhaust blocked, pressure retained, or exhaust center);
3. 2-position double pilot-operated valve features memory function to retain the last control state;
4. Precision-machined internal bore reduces friction resistance, enabling low actuation pressure and extended service life;
5. Oil-free lubrication design eliminates the need for external lubrication;
6. Modular design allows integration with manifold bases to save installation space;
**Category**: Pneumatic Control Valves | **Brand**: AirTAC | **Series**: 5A --- Note: The translation incorporates industry-specific terminology (e.g., "spool-type," "double pilot-operated," "manifold bases") and structural clarity while retaining the original HTML line breaks. Key technical features like memory function, modularity, and lubrication-free operation are emphasized for professional context.
AirTAC 5A230C06 Pneumatic Control Valve Technical Details
- Model: 5A230C06 (5A Series)
- Valve type: 3-position, 5-way closed center
- Operation method: Air pilot operated (double solenoid)
- Port thread: G1/8 (BSPP) with NPT optional
- Effective area ratio: 1:1.3 (pilot piston design)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow capacity: 850 L/min (ANR) at 0.5 MPa
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Seal material: Heat-resistant NBR (Nitrile) for -20℃ to 120℃
- Body material: Aluminum alloy with hard anodized finish
- Manual override: Built-in push-button with lock
- Weight: 720g ±5% (including coils and accessories)
- Dimensions: 130mm(L) × 45mm(W) × 60mm(H) (excluding fittings)
- Response time: ≤35ms (exhaust to actuation)
- Protection rating: IP67 (coils), IP40 (valve body)
- Mounting options: Direct piping or sub-base mounting (ISO 15407-1 compliant)
High-flow directional control valve featuring symmetrical pressure compensation design for stable mid-position performance. The dual-coil configuration enables precise cylinder control with memory function. Enhanced pilot mechanism ensures reliable switching under vibration conditions. Requires 5μm filtered lubricated air (ISO 8573-1 class 4.4.3).
- Multi-station rotary indexing tables
- Plastic injection molding clamp units
- Automated assembly line transfer systems
- Press brake tooling positioners
- Textile machinery cylinder sequencing
Installation guidelines:
Maintain minimum 20mm clearance below valve for heat dissipation.
Use flexible tubing for vibration isolation. Lubricator oil viscosity
should be ISO VG32 or equivalent. Perform monthly pilot filter cleaning
in high-cycle applications (>500,000 actuations/month).
| Property | Property Value |
|---|---|
| sku | 5A230C06 |
| Position | 5-port 3-position |
| Port Size | PT1/8 |
