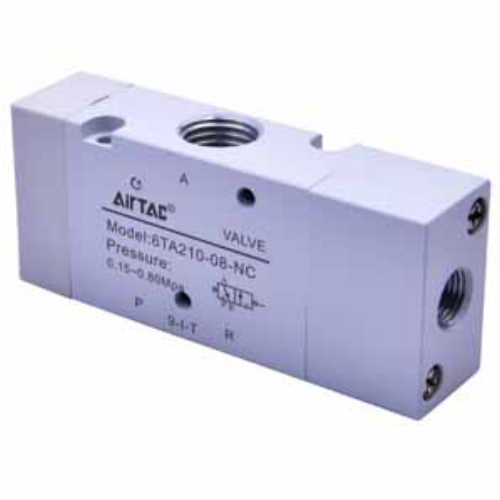

Airtac 6TA Pneumatic Control Valve 6TA110M5NO
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Compatible with base-mounted integrated valve manifolds, optimizing spatial efficiency in system layouts.
Classification: Air Control Valve | Brand: Airtac | Series: 6TA
AirTAC 6TA110M5NO Pneumatic Control Valve Specifications
- Model: 6TA110M5NO
- Type: 5-port 3-position (Mid-block design)
- Port size: M5 (ISO G1/8 equivalent)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Actuation method: Air pilot operated (requires 0.15–0.7 MPa pilot pressure)
- Flow capacity: 750 L/min (ANR) at 0.5 MPa
- Weight: 320g ±5g
- Dimensions: 78mm(L) × 34mm(W) × 42mm(H)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -10℃ to 80℃ (non-freezing conditions)
- Port thread depth: 8mm (minimum engagement)
- Housing material: Anodized aluminum alloy
- Response time: ≤0.1s (at rated pressure)
- Protection rating: IP54 (dust/water spray resistant)
High-flow directional control valve with center-block function, engineered for precision pneumatic circuit control. Features low pilot consumption (≤0.3 MPa) and anti-vibration design. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.2.3 air quality. Compatible with ISO 15407-1 mounting interfaces.
- Automated assembly line clamping systems
- Plastic injection molding machine actuators
- CNC tool changers with mid-position safety lock
- Textile machinery cylinder control
- Bottle capping station pneumatic circuits
Installation note:
Mount with 10mm clearance around valve body for heat dissipation.
Use copper-free anti-seize compound on threads. Manual override
requires 3mm hex key access space. Avoid mounting near high-frequency
vibration sources (>50Hz).
| Property | Property Value |
|---|---|
| sku | 6TA110M5NO |
| Initial Position | Normally Open |
| Port Size | M5 |
