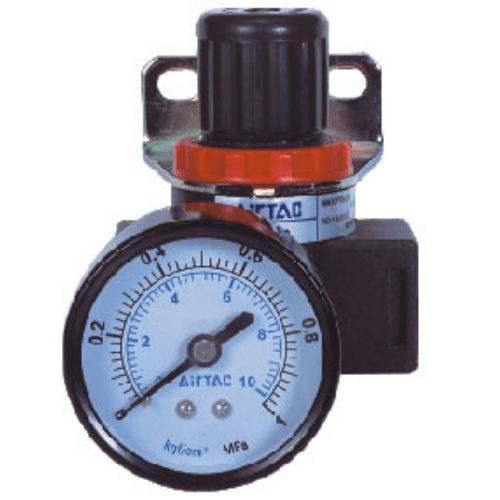

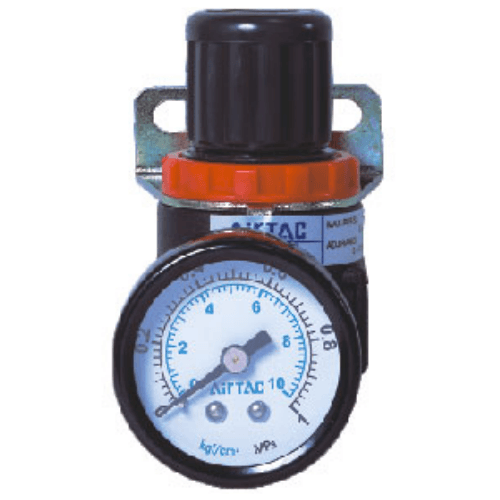

Airtac AR1500/2000 Pressure Regulator AR1500J4
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500J4 Technical Details
- Model: AR1500J4 (AR1500/2000 series)
- Type: Precision pressure regulator with gauge port
- Port size: 1/4" BSPP (G1/4)
- Pressure range: 0.05-0.85 MPa (7-123 PSI)
- Max flow capacity: 2,000 NL/min (ANR)
- Operating temperature: -5℃ to 80℃
- Housing material: Die-cast aluminum alloy (anodized)
- Diaphragm material: NBR (Nitrile rubber)
- Spring chamber: Stainless steel SUS304
- Weight: 480g ±5%
- Dimensions: 76mm(H) × 50mm(W) × 45mm(D)
- Pressure gauge interface: M5 threaded
- Locking mechanism: Anti-vibration knob with torque ≤1.2N·m
- Leakage rate: ≤0.1 NL/min @ 0.7MPa
- Filter requirement: 5μm particulate filtration recommended
High-sensitivity pressure regulator featuring dual-chamber design for stable output under fluctuating input pressures. The integrated pressure gauge port allows real-time monitoring, while the ergonomic locking knob prevents accidental adjustments. Optimized flow path reduces pressure drop by 15% compared to standard models.
- Pneumatic automation lines requiring stable actuator pressure
- Packaging machinery pressure compensation systems
- Semiconductor manufacturing gas pressure control
- Medical device pneumatic circuits
- Robotic end-effector tooling pressure regulation
Installation guidelines:
Mount vertically with arrow direction matching airflow. Use PTFE tape on threads
and perform initial pressure calibration at 50% of max operating pressure.
Maintain 30cm clearance from heat sources.
| Property | Property Value |
|---|---|
| sku | AR1500J4 |
| Port Size | PT1/8 |
