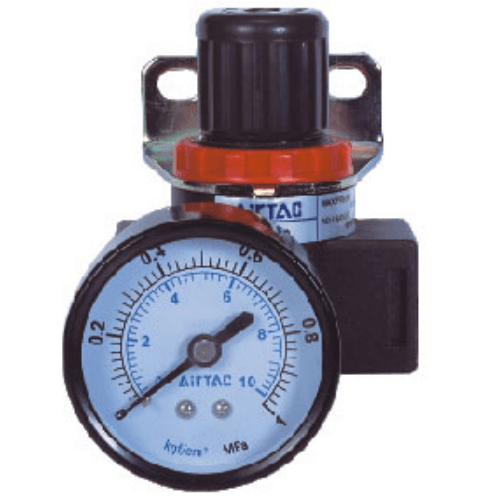

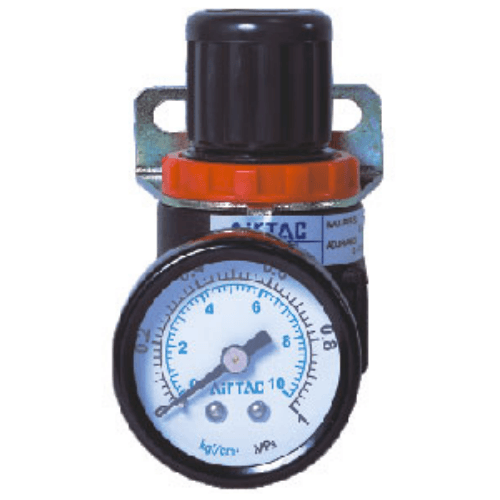

Airtac AR1500/2000 Pressure Regulator AR1500L4
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500L4 Technical Details
- Model: AR1500L4 (Lockable Handle Type)
- Series: AR1500/2000 Compact Regulator Family
- Port size: 1/4" BSPP (G1/4)
- Pressure range: 0.05-0.9 MPa (7-130 PSI)
- Maximum flow: 2000 NL/min (ANR)
- Operating temperature: -5℃ to 80℃ (no freeze)
- Body material: Aluminum alloy with anodized finish
- Seal material: HNBR (Hydrogenated Nitrile)
- Pressure gauge: Built-in 40mm dial (0-1.0 MPa scale)
- Lock mechanism: Push-pull locking knob with tamper resistance
- Weight: 480g ±2%
- Dimensions: 118mm(H) × 52mm(W) × 82mm(D)
- Mounting: Panel mount with M5 screw slots
- Relief type: Built-in overflow valve
- Hysteresis: ≤0.02 MPa
Precision pressure regulator featuring dual-chamber design for stable output under fluctuating input pressures. The L4 variant includes a security lock to prevent accidental adjustment, with color-coded pressure scale (blue ring indicates adjustment range). Integrated silencer reduces exhaust noise to ≤65dB(A).
- Pneumatic tool pressure stabilization in assembly lines
- Medical gas pressure control systems
- Semiconductor wafer handling robotics
- Textile machinery air pressure management
- Packaging machine clamp force regulation
Maintenance protocol:
Lubricate adjustment screw quarterly with ISO VG32 turbine oil.
Always install downstream of 5μm filter. For vertical mounting,
orient gauge at 30° forward tilt for optimal readability.
| Property | Property Value |
|---|---|
| sku | AR1500L4 |
| Port Size | PT1/8 |
