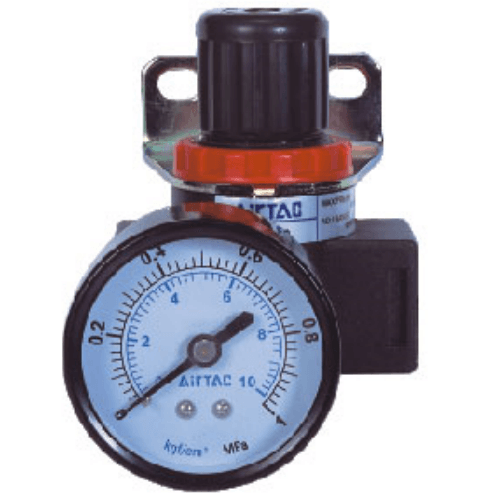

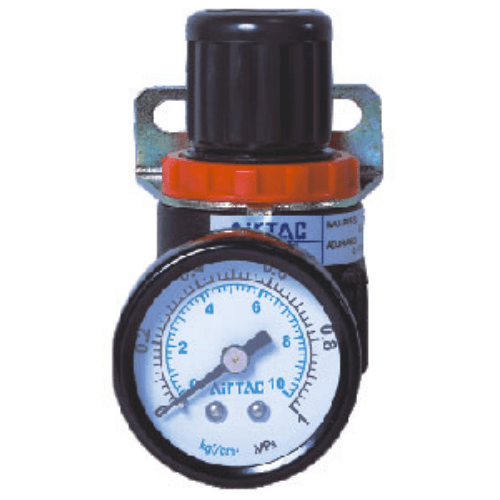

Airtac AR1500/2000 Pressure Regulator AR1500LJN
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500/2000 Series Pressure Regulator AR1500LJN Technical Specifications
- Model: AR1500LJN (Lockable Handle Type)
- Series: AR1500/2000 Universal Regulator Family
- Port size: PT1/4 (NPT1/4 optional)
- Pressure range: 0.05–0.85 MPa
- Max flow capacity: 2,500 L/min (ANR)
- Operating temperature: -5℃ to 60℃ (No freeze)
- Weight: 0.68 kg ±5%
- Dimensions: 50mm(W) × 85mm(H) × 105mm(D)
- Housing material: Die-cast aluminum alloy (anodized)
- Seal material: HNBR (Hydrogenated Nitrile)
- Pressure gauge: Built-in 1/8" gauge port
- Knob rotation: 270° adjustment range
- Venting type: Internal exhaust with muffler
- Protection rating: IP40 (standard)
High-precision pressure regulator with tamper-proof locking handle, featuring a dual-chamber design for stable output under fluctuating input pressures. The T-handle provides 360° accessibility with clear torque feedback. Integrated debris screen protects downstream components. Requires 5μm pre-filter for optimal performance.
- Factory automation pneumatic circuits
- Plastic injection molding machines
- CNC machine tool clamping systems
- Packaging line pressure stabilization
- Semiconductor manufacturing equipment
Installation guidelines:
Mount vertically with arrow aligned to airflow direction.
Allow 50mm clearance below for gauge installation.
Perform monthly diaphragm inspection in high-cycling applications (>5,000 operations/day).
| Property | Property Value |
|---|---|
| sku | AR1500LJN |
| Port Size | PT1/8 |
