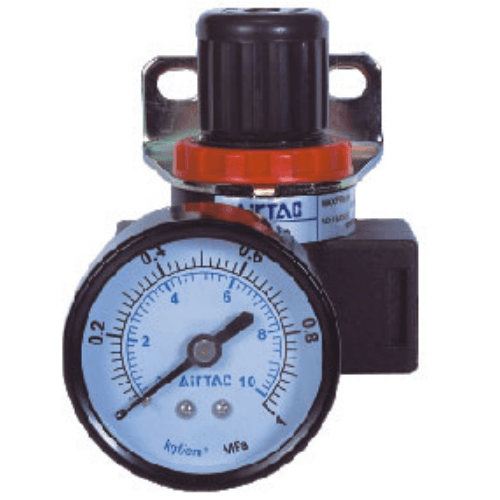

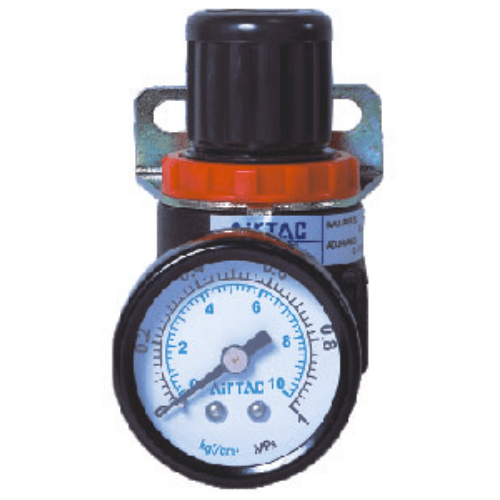

Airtac AR1500/2000 Pressure Regulator AR1500N
1. Features compact and lightweight design for simplified installation and operation;
2. Integrated press-in self-locking mechanism prevents unintended pressure setting changes due to external disturbances;
3. Optional low-pressure variant available (maximum adjustable pressure 0.4MPa) in addition to standard configuration.
Category: Pressure Regulator | Brand: AIRTAC | Series: AR1500/2000
AirTAC AR1500N Pressure Regulator Technical Specifications
- Model: AR1500N (AR1500/2000 Series)
- Type: Precision air pressure regulator with gauge
- Port size: 1/4" BSPP (G1/4)
- Operating pressure range: 0.05-0.85 MPa
- Pressure regulation range: 0.05-0.7 MPa (factory set at 0.4 MPa)
- Max flow capacity: 3,500 NL/min
- Mounting type: Panel mount with lock nut
- Body material: Aluminum alloy (anodized finish)
- Diaphragm material: NBR rubber
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 0.48 kg ±2%
- Dimensions: 76mm(H) × 50mm(W) × 50mm(D)
- Protection rating: IP40 (dust protected)
- Optional accessories: Pressure gauge protector (P/N: ARG-04), mounting bracket kit
High-sensitivity pressure regulator featuring dual-chamber design for stable output pressure compensation. Equipped with a 40mm diameter precision gauge (0.25% F.S. accuracy) and anti-vibration mechanism. The T-handle adjustment knob includes a security lock ring to prevent accidental pressure changes. Compatible with ISO-7/1 (Rp) threaded connections.
- Centralized pneumatic system pressure regulation
- Plastic injection molding machine air circuits
- Automated assembly line tooling pressure control
- Packaging machinery air pressure stabilization
- Industrial robotic end-effector pneumatic systems
Installation guidelines:
Install downstream of filter/lubricator (FRL) units. For vertical mounting,
position gauge at 30° forward tilt angle for optimal readability.
Requires 5-10Nm torque for port connections using 19mm wrench.
| Property | Property Value |
|---|---|
| sku | AR1500N |
| Port Size | PT1/8 |
