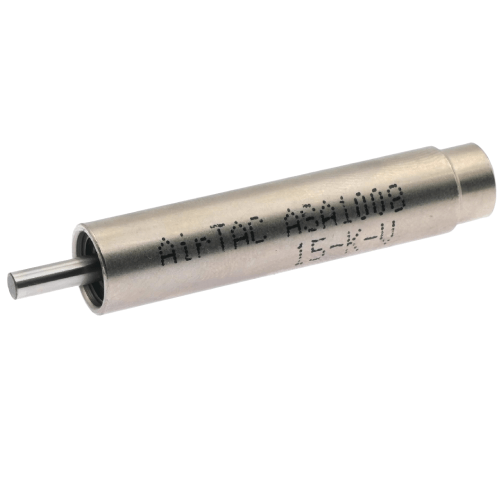

Airtac ASA Hydraulic Shock Absorber ASA1008
AirTAC ASA Series Hydraulic Shock Absorber ASA1008 Technical Details
- Model: ASA1008
- Type: Adjustable oil hydraulic buffer
- Max. absorbed energy: 4.5 N·m/cycle
- Max. impact velocity: 3.0 m/s
- Max. impact frequency: 200 cycles/min
- Operating temperature: -10℃ to +80℃
- Main material: Chrome-plated steel body
- Seal material: Polyurethane (PU)
- Oil type: ISO VG15 hydraulic oil
- Mounting orientation: Horizontal/Vertical (360° rotatable)
- Weight: 0.82 kg
- Dimensions: 100mm(L) × 38mm(W) × 38mm(H)
- Thread size: M10×1.25 mounting thread
- Stroke length: 8mm
- Return time: ≤1.5 sec (after full compression)
- Protection class: IP65 (dust & water jet resistant)
High-precision hydraulic damper with adjustable damping force (via 8-stage rotary adjustment knob). Features triple-layer sealing system and anti-vibration structure, optimized for heavy-duty industrial environments. Pre-filled with temperature-stable hydraulic fluid for consistent performance between -10℃ to +80℃.
- Pneumatic cylinder end-of-stroke cushioning
- Automated assembly line stopper mechanisms
- Packaging machine ram deceleration
- CNC tool changer positioning buffers
- Elevator car damping systems
- Robotic arm joint shock absorption
Installation guidelines:
Apply thread locker (Loctite 243 recommended) on mounting bolts.
Perform initial 50-100 test cycles before final torque adjustment.
Maintenance interval: Relubricate every 500,000 cycles or 12 months.
