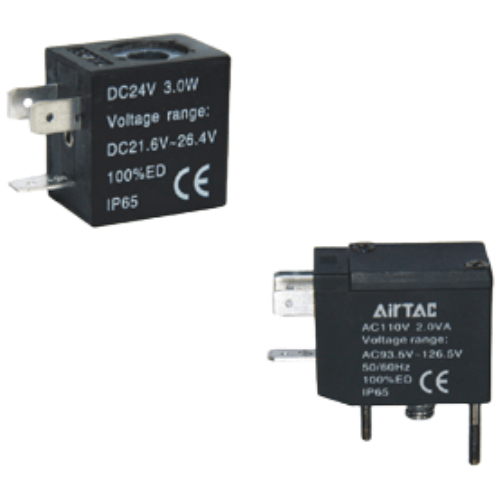

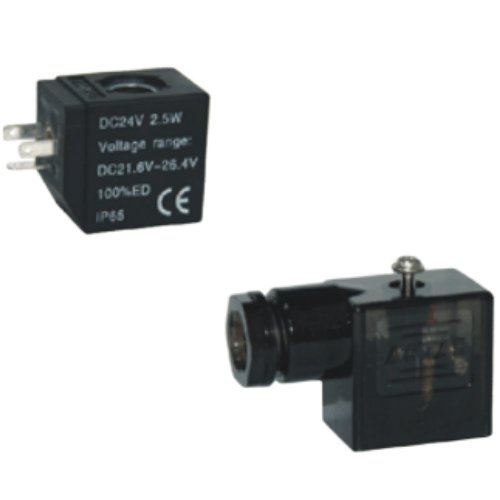

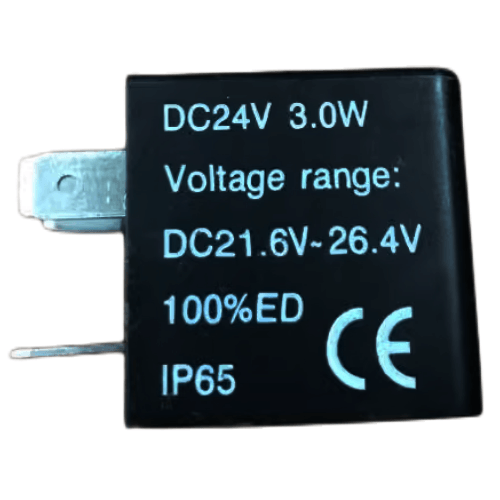

Airtac CDA Standard Solenoid Coil CDA092B
Category: Solenoid Valve Coils , Brand: AirTAC , Series: CDA
AirTAC CDA092B Standard Solenoid Coil Specifications
- Model: CDA092B
- Type: DIN-standard solenoid coil (encapsulated)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Power consumption: ≤3.5W (DC), ≤4.5VA (AC)
- Insulation class: Class B (130℃)
- Protection rating: IP65 (coil housing)
- Lead wire length: 200mm (standard) with UL1007 22AWG PVC wire
- Terminal type: DIN43650 Form A (rectangular plug connector)
- Core tube material: Stainless steel SUS304
- Operating temperature: -20℃ to +50℃ (no freezing)
- Storage temperature: -30℃ to +70℃
- Weight: 210g ±5g
- Dimensions: 50mm(L) × 35mm(W) × 25mm(H) (excluding connector)
High-efficiency solenoid coil with epoxy resin encapsulation, designed for reliable operation in humid/dusty environments. Features temperature-resistant windings and surge protection circuitry. Compatible with ISO15407-1 standard valves. Includes built-in LED status indicator (varies by voltage version).
- Pneumatic valve actuation in CNC machines
- Industrial dishwasher control systems
- Textile machinery pneumatic circuits
- Beverage filling line automation
- HVAC damper control systems
Installation note:
Ensure proper alignment with valve stem during assembly.
Use torque ≤0.5N·m when tightening mounting screws.
Maintain 15mm clearance from heat sources (>80℃).
| Property | Property Value |
|---|---|
| sku | CDA092B |
| Standard Voltage | DC24V |
| Coil Inner Diameter | 9.0mm |
