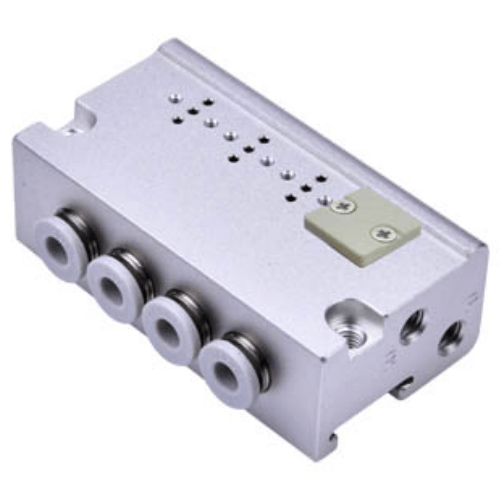

Airtac CPV10M Mounting Base CPV10MJ03-15F
$38.11
Regular price
$45.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CPV10MJ03-15F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Integrated manifold valve system for compact design, effectively saving space and reducing the need for additional accessories.
2. Centralized air inlet/exhaust ports with streamlined piping layout ensure simplified troubleshooting during malfunctions.
3. Modular design with expandable configuration - allows flexible combination and expansion of solenoid valve units. Compatible with optional blind plates for customized setups.
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: CPV10M Series
Installation note:
Apply 2.5-3.5N·m torque during screw tightening. Use thread-locking compound
in high-vibration environments. Clean mounting surface with isopropyl alcohol
before assembly.
2. Centralized air inlet/exhaust ports with streamlined piping layout ensure simplified troubleshooting during malfunctions.
3. Modular design with expandable configuration - allows flexible combination and expansion of solenoid valve units. Compatible with optional blind plates for customized setups.
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: CPV10M Series
AirTAC CPV10MJ03-15F Mounting Base Specifications
- Model: CPV10MJ03-15F
- Compatibility: Designed for CPV10M series cylinders
- Material: High-grade aluminum alloy (ADC12)
- Surface treatment: Anodized oxidation (black)
- Mounting type: Horizontal/vertical dual orientation
- Bore size compatibility: Ø10mm cylinders
- Mounting hole spacing: 15mm (center-to-center)
- Thread specifications: M4×0.7 mounting screws
- Weight: 87g ±2g
- Dimensions: 32mm(L) × 18mm(W) × 15mm(H)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10-55Hz (1.5mm amplitude)
- Corrosion resistance: 96hr salt spray test passed
Precision-engineered mounting base featuring anti-rotation design for stable cylinder fixation. The diamond-knurled surface enhances grip during manual adjustments, while the through-hole pattern allows integrated sensor mounting. Compatible with ISO 21287 standard accessories.
Typical Applications:
- Modular pneumatic assembly systems
- SCARA robot end-effector mounting
- Conveyor sorting mechanism bases
- Semiconductor wafer handling equipment
- 3-axis CNC tool changers
Installation note:
Apply 2.5-3.5N·m torque during screw tightening. Use thread-locking compound
in high-vibration environments. Clean mounting surface with isopropyl alcohol
before assembly.
| Property | Property Value |
|---|---|
| sku | CPV10MJ03-15F |
