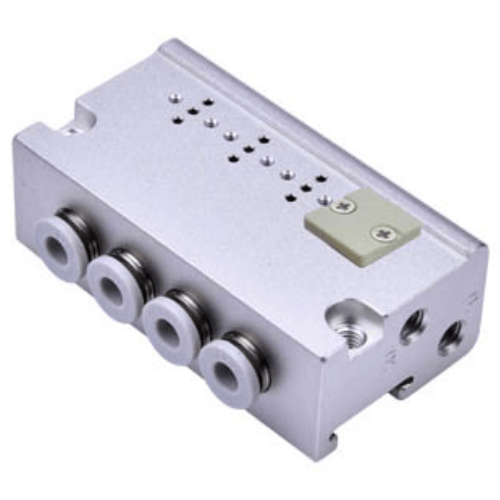

Airtac CPV10M Mounting Base CPV10MJ04-2F
$12.78
Regular price
$20.28
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CPV10MJ04-2F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Integrated manifold valve system for compact design, effectively saving space and reducing the need for additional accessories.
2. Centralized air inlet/exhaust ports with streamlined piping layout ensure simplified troubleshooting during malfunctions.
3. Modular design with expandable configuration - allows flexible combination and expansion of solenoid valve units. Compatible with optional blind plates for customized setups.
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: CPV10M Series
Installation note:
Apply 3-5Nm torque during screw tightening. Use thread sealant only on
male threads (not required for BSPP parallel threads). Maintain minimum
15mm clearance below base for manifold maintenance.
2. Centralized air inlet/exhaust ports with streamlined piping layout ensure simplified troubleshooting during malfunctions.
3. Modular design with expandable configuration - allows flexible combination and expansion of solenoid valve units. Compatible with optional blind plates for customized setups.
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: CPV10M Series
AirTAC CPV10MJ04-2F Base Bracket for CPV10M Series
- Model: CPV10MJ04-2F
- Compatible Series: CPV10M solenoid valves
- Material: Aluminum alloy (ADC12)
- Surface Treatment: Anodized oxidation (black)
- Mounting Type: ISO G1/8 port pattern compliant
- Port Thread Size: G1/8 (BSPP)
- Weight: 238±5g
- Dimensions: 56mm(L) × 42mm(W) × 24mm(H)
- Mounting Hole Spacing: 32mm center-to-center
- Seal Material: NBR (Nitrile rubber)
- Temperature Resistance: -20℃ to 80℃
- Pressure Rating: 0.05-1.0 MPa
- Vibration Resistance: ≤10 Hz (1.5mm amplitude)
Precision-machined mounting base designed for secure installation of CPV10M series valves in modular pneumatic systems. Features dual-flow path design with integrated silencer grooves and anti-vibration rubber pads. Includes self-aligning manifold ports for leak-free connections.
Typical Applications:
- Modular valve clusters in CNC machinery
- Automated assembly line control stations
- Robotic arm pneumatic control units
- Semiconductor manufacturing equipment
- Multi-valve manifolds for packaging systems
Installation note:
Apply 3-5Nm torque during screw tightening. Use thread sealant only on
male threads (not required for BSPP parallel threads). Maintain minimum
15mm clearance below base for manifold maintenance.
| Property | Property Value |
|---|---|
| sku | CPV10MJ04-2F |
