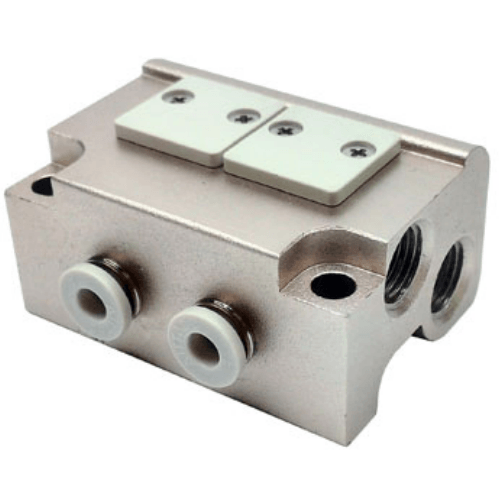

Airtac CPV15M Manifold Base CPV15M18F
$48.82
Regular price
$56.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CPV15M18F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Integrated valve manifold design optimizes space utilization and minimizes the need for additional accessories.
2. Unified air inlet/exhaust ports with centralized wiring facilitate efficient system maintenance and troubleshooting.
3. Modular design offers flexible configuration and high expandability for multiple solenoid valve connections, compatible with optional blanking plates.
Category: Solenoid Valve Base | Brand: AirTAC | Series: CPV15M Series
Installation note:
Apply 5-7Nm torque during screw fastening. Use spring washers
for high-vibration environments. Align within 0.2mm parallelism
tolerance relative to motion axis.
2. Unified air inlet/exhaust ports with centralized wiring facilitate efficient system maintenance and troubleshooting.
3. Modular design offers flexible configuration and high expandability for multiple solenoid valve connections, compatible with optional blanking plates.
Category: Solenoid Valve Base | Brand: AirTAC | Series: CPV15M Series
AirTAC CPV15M18F Cylinder Base Specifications
- Model: CPV15M18F (Compatible with CPV15M series cylinders)
- Type: Compact flange-mounted base for linear actuators
- Material: Aluminum alloy (anodized surface treatment)
- Mounting Pattern: ISO 15552 (formerly ISO 6432) compliant
- Bore Size Compatibility: 15mm cylinder series
- Thread Specifications: M6×1.0 mounting holes (4x)
- Surface Hardness: ≥80 HBW
- Weight: 218g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 18mm(H)
- Temperature Range: -20℃ to 100℃ (operational)
- Corrosion Resistance: Salt spray tested 96h (ASTM B117)
- Vibration Resistance: ≤10-55Hz, 1.5mm amplitude
Precision-machined mounting base featuring anti-loosening thread design and multi-axis alignment capability. Includes integrated shock absorption grooves for reduced lateral stress. Compatible with both horizontal and vertical installations in confined spaces.
Typical Applications:
- Modular pneumatic assembly systems
- PCB handling robots in electronics manufacturing
- Precision dosing mechanisms in pharmaceutical equipment
- Automated packaging line gripper mounts
- Semiconductor wafer transfer units
Installation note:
Apply 5-7Nm torque during screw fastening. Use spring washers
for high-vibration environments. Align within 0.2mm parallelism
tolerance relative to motion axis.
| Property | Property Value |
|---|---|
| sku | CPV15M18F |
