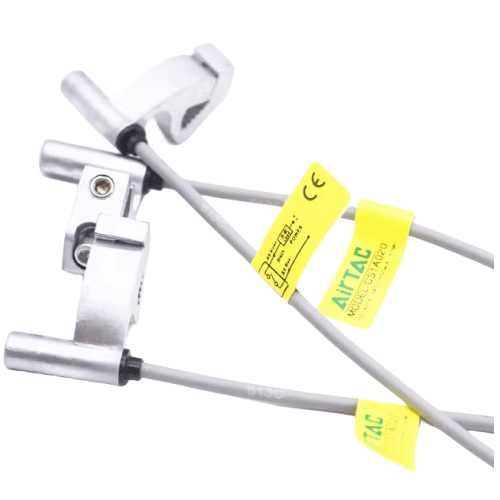

Airtac CS1A Reed Sensor CS1A040
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1A Reed Sensor CS1A040 Technical Details
- Model: CS1A040
- Type: Non-contact magnetic reed sensor
- Operating voltage: DC12-24V±10%
- Output type: NPN normally open (NO)
- Current consumption: ≤15mA
- Sensing distance: 4mm±10%
- Hysteresis: ≤10% of sensing distance
- Operating temperature: -25℃ to 80℃
- Protection class: IP67
- Housing material: PBT + PC blend
- Connection type: 2m PVC cable (M8 connector optional)
- Electrical life: ≥10⁷ operations
- Response frequency: ≤1500Hz
- Weight: ~30g
- Dimensions: 40mm(L) × 18mm(W) × 8mm(H)
Compact magnetic proximity switch designed for precise position detection in pneumatic systems. Features gold-plated reed contacts for enhanced conductivity and oxidation resistance. The encapsulated structure provides excellent resistance to vibration and environmental contaminants. Compatible with ISO cylinder mounting standards.
- Cylinder position feedback in automation lines
- Safety door monitoring in injection molding machines
- Position verification in packaging equipment
- Elevator door status detection systems
- Tooling machine end-stop confirmation
Installation guidelines:
Mount parallel to cylinder axis with ≤0.5mm alignment tolerance.
Maintain 2-3mm air gap between sensor face and cylinder surface.
Avoid proximity to strong electromagnetic sources (>50mT).
