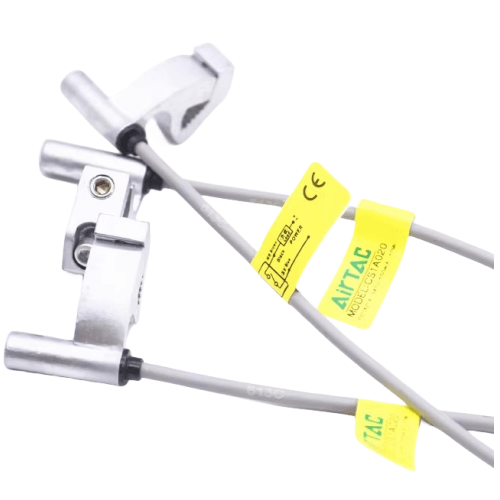

Airtac CS1A Reed Sensor CS1AC12
2. This deceptively simple design provides robust circuit control for diverse industrial and commercial applications, ensuring reliable switching performance in electrical systems.
AirTAC CS1AC12 Reed Sensor Technical Details
- Model: CS1AC12
- Type: Magnetic reed proximity sensor
- Output type: PNP normally open (NO)
- Voltage range: DC5-240V (±10%)
- Current consumption: ≤13mA
- Detection distance: 4mm ±10% (from magnet surface)
- Response frequency: 100Hz max
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Housing material: PBT resin (UL94 V-0)
- Cable specification: 2m PVC cable (3-wire)
- Connection: Brown(+), Blue(-), Black(output)
- Weight: 35g ±2g
- Dimensions: 58mm(L) × 15mm(W) × 15mm(H)
- Hysteresis: ≤10% of detection distance
- Insulation resistance: ≥50MΩ (500VDC megger)
Non-contact magnetic detection switch with hermetically sealed reed contacts, designed for precise position sensing in pneumatic cylinders. Features reverse polarity protection and surge suppression circuitry. The IP67-rated housing withstands oil mist and mechanical vibration environments.
- Cylinder piston position feedback in automation lines
- Tooling machine safety interlocks
- Packaging equipment cycle counting
- Elevator door position verification systems
- Hydraulic press stroke limit detection
Installation guidance:
Mount sensor parallel to cylinder axis with 0.5-1mm air gap from magnet.
Avoid proximity to strong electromagnetic sources (≥50mm from inverters).
For optimal performance, use matching AirTAC cylinder magnets (M9 series recommended).
| Property | Property Value |
|---|---|
| sku | CS1AC12 |
