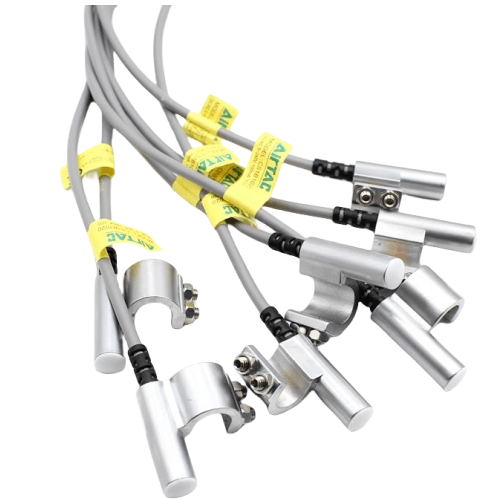

Airtac CS1B Reed Sensor CS1B2040
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B Reed Switch Sensor CS1B2040 Technical Specifications
- Model: CS1B2040
- Type: Non-contact magnetic proximity sensor
- Sensing distance: 4mm ±10% (from magnet surface)
- Output configuration: 2-wire NO (Normally Open)
- Voltage range: DC 5-240V (AC compatible)
- Max switching current: 200mA
- Leakage current: <0.8mA
- Response frequency: ≤100Hz
- Wire length: 2m standard (PVC insulated)
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Housing material: PBT (Polybutylene Terephthalate)
- Contact material: AgCdO (Silver Cadmium Oxide)
- Weight: 52g ±3g
- Dimensions: 40mm(L) × 20mm(W) × 10mm(H)
- Mounting: M4 screw or cylinder slot installation
Compact reed switch sensor with enhanced EMI resistance, designed for precise position detection in pneumatic cylinders. Features dual-color LED status indication (red/green) and reverse polarity protection. Operates effectively in high-vibration environments with built-in surge suppression.
- Pneumatic cylinder end-position detection
- Automated packaging machinery limit sensing
- Hydraulic press safety interlocks
- Conveyor system object presence verification
- Elevator door position confirmation systems
Installation guidelines:
Maintain 0.5-1mm air gap between sensor and actuator magnet. Avoid parallel installation with high-current cables (min. 100mm separation). For cylinder mounting, use M4×12mm screws with 0.6-0.8Nm torque.
| Property | Property Value |
|---|---|
| sku | CS1B2040 |
