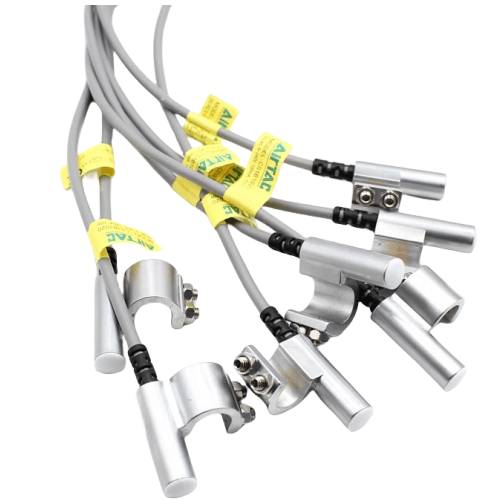

Airtac CS1B Reed Sensor CS1B2050
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B2050 Reed Sensor Technical Details
- Model: CS1B2050
- Sensor type: Reed switch (non-contact magnetic sensing)
- Output configuration: NPN normally open (NO)
- Contact form: 1a (single pole single throw)
- Operating voltage: 5-30V DC (±10%)
- Current consumption: ≤15mA
- Response time: ≤1ms
- Detection distance: 0-10mm (adjustable)
- Housing material: PBT+PC composite (UL94 V-0 rated)
- Protection class: IP67 (dust/water resistant)
- Temperature range: -20℃ to +70℃
- Cable specification: 3-core shielded PVC cable, 0.3mm² x 3C
- Cable length: 500mm (standard)
- Weight: 28g ±2g
- Dimensions: 19.5mm(W) × 8.5mm(H) × 42mm(L)
- Mounting: T-slot groove compatible (8mm/10mm cylinder)
Compact magnetic proximity sensor featuring overcurrent protection and reverse polarity safeguard. Engineered with shock-resistant construction (up to 100m/s²) and LED status indication. Operates through non-ferrous metal barriers up to 2mm thickness. Includes adjustable sensitivity screw for precise position calibration.
- Pneumatic cylinder end position detection
- Automatic door position feedback systems
- Packaging machine safety interlocks
- Injection molding machine clamp monitoring
- Conveyor belt material presence verification
Installation guidance:
Mount sensor parallel to cylinder axis with ≤0.5mm air gap.
Use M3 set screw (1.2N·m torque) for secure fixation.
Maintain 3mm clearance from ferrous materials during alignment.
| Property | Property Value |
|---|---|
| sku | CS1B2050 |
