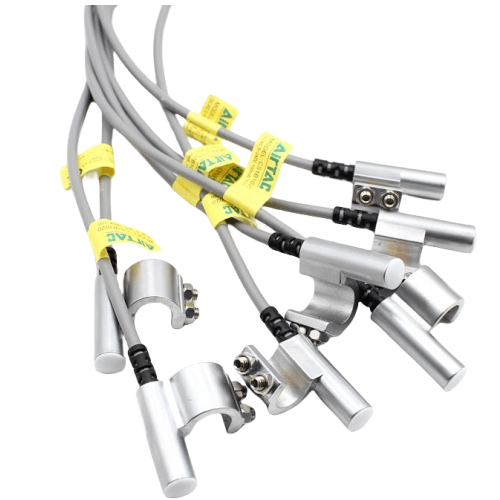

Airtac CS1B Reed Sensor CS1B6020
2. This deceptively simple mechanism provides reliable circuit control through contact closure, demonstrating exceptional durability and stability across diverse industrial automation systems and commercial equipment applications.
AirTAC CS1B Reed Switch Sensor CS1B6020 Technical Specifications
- Model: CS1B6020
- Sensor type: Reed switch (magnetic proximity)
- Operating voltage: DC 10-30V (±10%)
- Output configuration: NPN normally open (NO)
- Current consumption: ≤15mA
- Load current: ≤200mA
- Response frequency: ≤500Hz
- Indication: Red LED status light
- Protection class: IP67 (dust/water resistant)
- Housing material: PBT plastic with nickel-plated brass insert
- Cable specification: 2m PVC cable (UL2464 22AWG 3-core)
- Temperature range: -25℃ to +70℃ (operation), -40℃ to +85℃ (storage)
- Weight: 85g ±3%
- Dimensions: 18mm(W) × 18mm(D) × 60mm(L)
- Installation torque: 0.8-1.2N·m
- Hysteresis: ≤15% of sensing distance
High-precision magnetic proximity sensor with reinforced housing for industrial environments. Features reverse polarity protection and short-circuit prevention. The triple-sealed construction resists hydraulic oil, cutting fluids, and metal particles. Optimized for cylinder position detection with 2-4mm air gap tolerance.
- Pneumatic cylinder end position detection
- Automatic door safety interlocks
- Injection molding machine clamp monitoring
- Conveyor system object counting
- Elevator car leveling control
- Automotive welding fixture confirmation
Installation guidelines:
Mount sensor parallel to cylinder axis with magnetic piston. Maintain
1.5× sensing distance from ferrous materials. For optimal performance,
clean sensing face regularly using isopropyl alcohol and lint-free cloth.
| Property | Property Value |
|---|---|
| sku | CS1B6020 |
