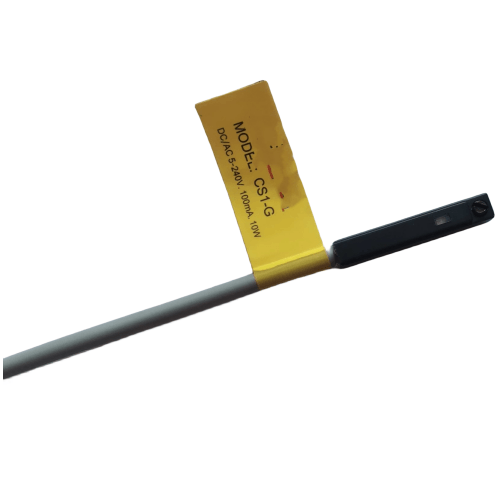

Airtac CS1G Reed Sensor CS1G050
$12.52
Regular price
$20.02
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1G050
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The CS1G Reed Sensor utilizes a magnet or electromagnet to generate a magnetic field, which actuates or deactivates the integrated reed switch within the sensor.
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
Installation guidelines:
Mount sensor parallel to cylinder axis with 2-4mm air gap. Use shielded cables
for EMI protection in high-frequency environments. Avoid direct exposure to
welding sparks or strong magnetic fields.
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.
AirTAC CS1G Reed Sensor CS1G050 Technical Specifications
- Model: CS1G050
- Type: Non-contact magnetic reed sensor
- Detection distance: 0-5mm (±10%)
- Output type: NPN normally open (NO)
- Supply voltage: DC10-30V (±10%)
- Current consumption: ≤15mA
- Response frequency: ≤1000Hz
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass fiber reinforced PBT
- Cable specification: 2m PVC cable (standard), 4-pin M8 connector optional
- Weight: 28g ±1g
- Dimensions: 18mm(W) × 36mm(H) × 10mm(D)
- Hysteresis: ≤15% of detection distance
- Indicator light: Red LED status display
Compact magnetic proximity sensor with reinforced housing for harsh environments. Features reverse polarity protection and short-circuit prevention. Optimized for cylinder position detection with ±0.3mm repeat accuracy. Compatible with ISO cylinder standards.
Typical Applications:
- Pneumatic cylinder end position detection
- Automated assembly line position feedback
- Packaging machine stroke monitoring
- Injection molding machine clamp position sensing
- Conveyor system object detection
Installation guidelines:
Mount sensor parallel to cylinder axis with 2-4mm air gap. Use shielded cables
for EMI protection in high-frequency environments. Avoid direct exposure to
welding sparks or strong magnetic fields.
| Property | Property Value |
|---|---|
| sku | CS1G050 |
