Airtac CS1G Reed Sensor CS1GC08
2. Despite its straightforward design, this deceptively simple mechanism provides reliable control over electrical circuits across a diverse range of industrial and commercial equipment.

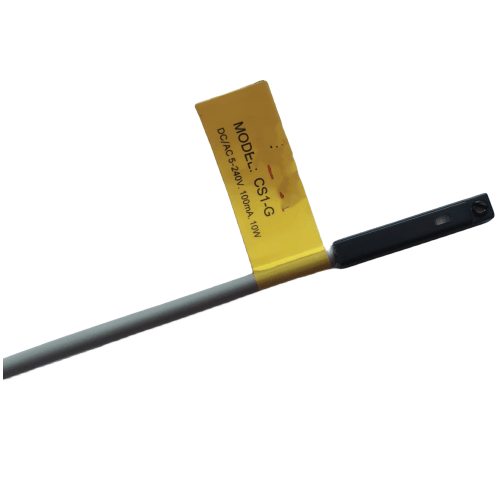

AirTAC CS1G Magnetic Reed Sensor CS1GC08 Technical Specifications
- Model: CS1GC08
- Sensor type: Magnetic reed switch (non-contact)
- Output configuration: NPN normally open (NO)
- Supply voltage: 5-240V DC/AC (wide voltage)
- Current consumption: ≤1.5mA
- Max switching current: 200mA
- Detection distance: 8mm ±10%
- Response frequency: ≤1000Hz
- Hysteresis: ≤15% of detection distance
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled PBT (UL94 V-0)
- Contact material: Rhodium-plated contacts
- Operating temperature: -25℃ to +80℃
- Storage temperature: -40℃ to +85℃
- Cable length: 2m standard (4-core shielded)
- Cable specification: 0.2mm² × 4P PVC jacket
- Weight: 22g ±1g
- Dimensions: 30mm(L) × 15mm(W) × 8mm(H)
High-precision magnetic proximity sensor with multi-voltage compatibility and ultra-thin profile. Features Rhodium-plated contacts for 10^7 operations lifespan, optimized for cylinder position detection in compact automation systems. EMI-shielded design ensures stable operation near VFDs and motors.
- Pneumatic cylinder end-position feedback in packaging lines
- Safety door interlock systems for injection molding machines
- Tool position verification in CNC automatic changers
- Conveyor belt object presence detection
- Elevator leveling position control
Installation guidelines:
Mount parallel to cylinder axis with 6-10mm air gap from magnet.
Use M3×0.5 screws with 0.3-0.5N·m torque.
Avoid installing near strong magnetic sources (>50mT).
