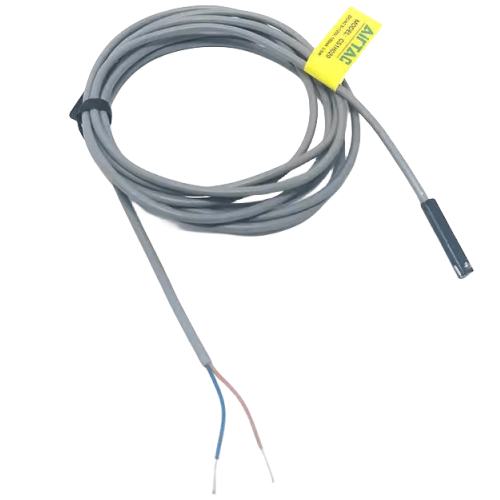

Airtac CS1H Reed Sensor CS1H050
1. This sensor utilizes permanent magnets or electromagnets to generate a magnetic field that actuates/deactuates a hermetically sealed reed switch within the sensing mechanism.
2. Featuring a deceptively straightforward mechanism design, it delivers reliable electrical circuit control across diverse industrial and commercial applications, demonstrating exceptional switching stability in challenging operational environments.
AirTAC CS1H Reed Sensor CS1H050 Technical Specifications
- Model: CS1H050
- Sensor type: Magnetic reed switch (non-contact)
- Output configuration: NPN normally open (NO)
- Operating voltage: 5-240V DC/AC (universal voltage)
- Current capacity: 0.5A max
- Sensing distance: 15±2mm (from magnet surface)
- Response frequency: ≤100Hz
- Contact resistance: ≤100mΩ
- Insulation resistance: ≥100MΩ (500V DC)
- Dielectric strength: 1500V AC for 1min
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass-filled nylon (UL94 V-0)
- Operating temperature: -25℃ to +70℃
- Connection type: 2m PVC cable (AWG22) with bare ends
- Weight: 28±2g (sensor only)
- Dimensions: 50mm(L) × 10mm(W) × 6.5mm(H)
Compact magnetic proximity sensor featuring contactless operation through pneumatic cylinder walls. Engineered with overstroke protection and vibration resistance (up to 10-55Hz, 1.5mm amplitude). The reinforced cable entry prevents wire fatigue, while the UL-certified housing ensures chemical resistance in harsh environments.
- Cylinder position feedback in injection molding machines
- Tooling position verification in CNC fixtures
- Safety interlocks for automated packaging lines
- Material handling system limit detection
- Hydraulic cylinder stroke monitoring
Installation guidelines:
Mount using M3 screws through Φ3.5mm mounting holes. Maintain parallel alignment
between sensor axis and magnet movement path. For optimal performance, keep
magnetic field strength between 30-50mT at sensing surface. Requires magnetic
piston (e.g., AKN series) with 20mm minimum diameter.
| Property | Property Value |
|---|---|
| sku | CS1H050 |
