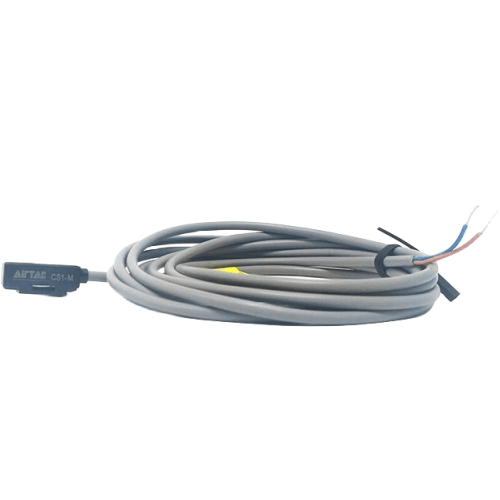

Airtac CS1M Reed Sensor CS1M030A32
$12.99
Regular price
$20.49
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1M030A32
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The reed sensor utilizes magnets or electromagnets to generate a magnetic field that actuates the hermetically sealed reed switch within the sensor assembly.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
Installation guide:
Maintain 0.5-1mm air gap between sensor face and cylinder magnet path.
Use M3×12mm screws (1.2-1.5N·m torque) for vibration resistance.
Cable bend radius ≥15mm at entry point.
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M Magnetic Reed Sensor CS1M030A32 Technical Details
- Model: CS1M030A32
- Type: Non-contact magnetic reed sensor
- Detection distance: 3mm ±10%
- Output type: PNP normally open (NO)
- Supply voltage: 10-30VDC (±10% ripple)
- Current consumption: ≤15mA
- Response frequency: ≤200Hz
- Hysteresis: ≤15% of detection distance
- Protection: Reverse polarity protection, surge suppression
- Ambient temperature: -25℃ to +70℃
- Housing material: PA66 (UL94 V-0)
- Connection: 2m PVC cable (3-core 0.2mm²)
- Protection rating: IP67 (IEC60529)
- Weight: 38g ±2g
- Dimensions: 18.5mm(W) × 57.5mm(L) × 12.5mm(H)
- Installation: DIN rail mount or direct screw fixing
Compact magnetic proximity sensor designed for precise cylinder position detection in pneumatic systems. Features reinforced epoxy-encapsulated reed switch with gold-plated contacts for 10 million+ operations. EMI-shielded design ensures stable operation near VFDs and motors.
Ideal Applications:
- Pneumatic cylinder end position feedback
- Injection molding machine clamp detection
- Automated conveyor gate positioning
- Hydraulic press safety interlocks
- Food-grade packaging line actuators
Installation guide:
Maintain 0.5-1mm air gap between sensor face and cylinder magnet path.
Use M3×12mm screws (1.2-1.5N·m torque) for vibration resistance.
Cable bend radius ≥15mm at entry point.
| Property | Property Value |
|---|---|
| sku | CS1M030A32 |
