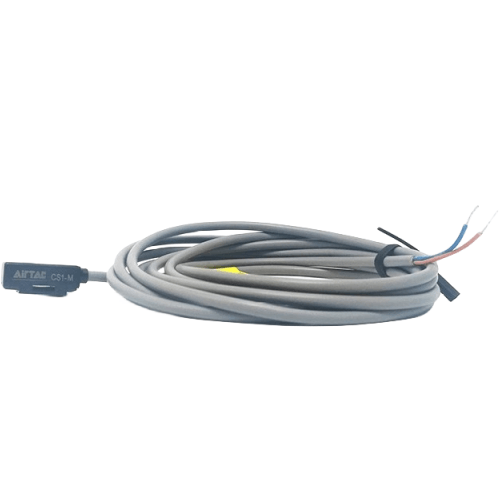

Airtac CS1M Reed Sensor CS1M030S40
2. This robust design enables reliable circuit control in diverse industrial automation systems and commercial equipment applications, demonstrating exceptional durability in harsh operating environments while maintaining precise switching characteristics.
AirTAC CS1M Magnetic Reed Sensor CS1M030S40 Specifications
- Model: CS1M030S40
- Type: Magnetic reed proximity sensor (cylinder-mounted)
- Detection method: Non-contact magnetic field sensing
- Voltage range: DC 5-240V (AC/DC compatible)
- Output type: 2-wire NPN normally open (NO)
- Operating temperature: -25℃ to +70℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: PA66+GF30 (30% glass fiber reinforced nylon)
- Cable length: 400mm (standard)
- Switch capacity: ≤100mA
- Repeat accuracy: ±0.5mm
- Response frequency: ≤2000Hz
- Contact resistance: ≤100mΩ
- Mechanical life: 107 operations
- Weight: 48g ±2g
- Dimensions: 30mm(L) × 18mm(W) × 10mm(H)
Compact magnetic sensor with overvoltage protection and reverse polarity safeguard. Features vibration-resistant construction and precise position detection through non-ferrous metal barriers. Embedded LED status indicator enables quick diagnostics. Compatible with ISO/VDMA standard pneumatic cylinders.
- Pneumatic cylinder position feedback in automated assembly lines
- Safety interlock detection for injection molding machines
- Material handling system limit switching
- Textile machinery thread breakage monitoring
- Hydraulic press stroke control systems
Installation note:
Mount within 3mm of cylinder's magnetic piston path. Use M5 mounting screws
with 0.4-0.6Nm torque. Maintain 15mm clearance from ferrous materials.
| Property | Property Value |
|---|---|
| sku | CS1M030S40 |
