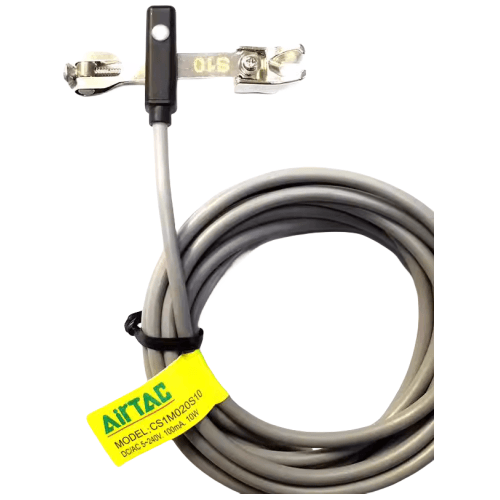

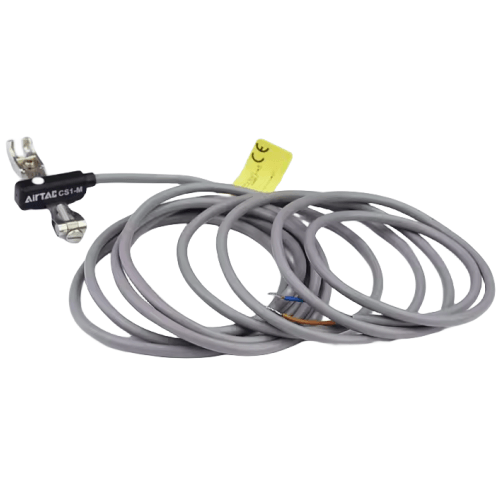

Airtac CS1MC Reed Type Sensor CS1MC08S12
$15.32
Regular price
$22.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1MC08S12
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. A Reed Sensor operates by utilizing a magnet or electromagnet to generate a magnetic field, which actuates the internal Reed Switch through magnetic field interaction.
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
Installation guidelines:
Maintain 5mm minimum clearance between sensor face and metal surfaces.
For optimal performance in high-vibration environments, use M5×0.8 mounting screws
with 0.4-0.6Nm torque. Avoid parallel routing with power cables (>10cm separation).
2. This deceptively simple mechanism reliably controls electrical circuits across diverse industrial and commercial equipment applications.
AirTAC CS1MC Magnetic Reed Sensor CS1MC08S12 Technical Details
- Model: CS1MC08S12
- Type: Magnetic reed proximity sensor (non-contact)
- Operating voltage: DC 5-240V (10-250V AC/DC compatible)
- Current consumption: ≤8mA
- Output type: 2-wire normally open (NO)
- Detection distance: 8±1.5mm
- Response frequency: ≤1500Hz
- Hysteresis: ≤10% of detection distance
- Protection rating: IP67 (dust/water resistant)
- Housing material: Glass fiber reinforced PBT
- Contact material: Ruthenium alloy
- Temperature range: -25℃ to +70℃ (non-freezing)
- Vibration resistance: 10-55Hz with 1.5mm amplitude
- Shock resistance: 1000m/s² (3 axes)
- Cable specification: 2m PVC cable (AWG22)
- Weight: 52g ±3%
- Dimensions: 78mm(L) × 15mm(W) × 15mm(H)
Compact magnetic proximity switch with ruggedized design for harsh industrial environments. Features ruthenium alloy contacts for 5 million+ operations lifetime and built-in surge protection. The 360° detectable surface enables flexible mounting configurations.
Typical Applications:
- Cylinder position feedback in injection molding machines
- Automated conveyor belt limit detection
- Tooling machine safety interlocks
- Elevator door position verification systems
- Agricultural equipment stroke monitoring
Installation guidelines:
Maintain 5mm minimum clearance between sensor face and metal surfaces.
For optimal performance in high-vibration environments, use M5×0.8 mounting screws
with 0.4-0.6Nm torque. Avoid parallel routing with power cables (>10cm separation).
Certifications: CE, RoHS compliant. EMC immunity: 1000V/m (IEC 61000-4-3)
| Property | Property Value |
|---|---|
| sku | CS1MC08S12 |
