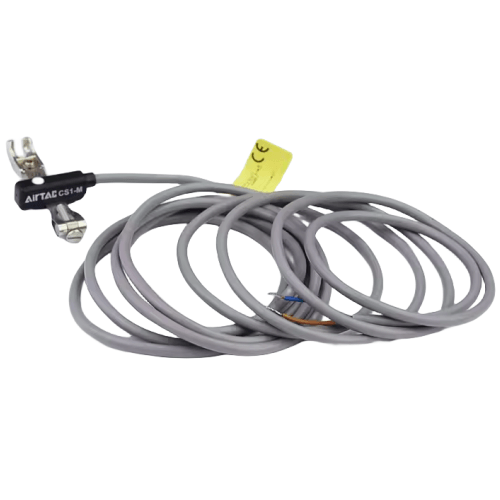

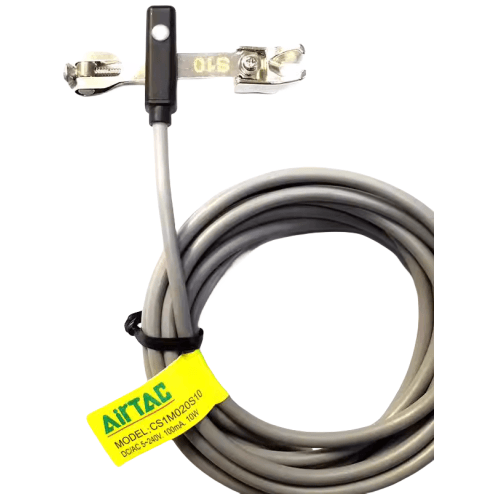

Airtac CS1MX Reed Sensor CS1MX020S32
$12.32
Regular price
$19.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
CS1MX020S32
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The CS1MX Magnetic Reed Sensor utilizes magnets or electromagnets to generate a magnetic field, activating/deactivating the enclosed reed switch mechanism through magnetic flux interaction.
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
Installation guidelines:
Mount sensor parallel to magnet path with ≤1mm air gap. Use shielded cable
when running parallel to high-voltage lines (>200V). Avoid installation in
strong magnetic fields (＞80kA/m). Perform sensitivity calibration after
mounting using indicator LED.
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
AirTAC CS1MX020S32 Reed Proximity Sensor Technical Details
- Model: CS1MX020S32
- Type: Non-contact magnetic reed switch
- Sensing distance: 0-3mm (adjustable)
- Output type: 2-wire NPN normally open (NO)
- Supply voltage: 5-240V DC/AC (universal voltage)
- Current consumption: ≤1.5mA
- Response frequency: ≤200Hz
- Hysteresis: ≤10% of sensing distance
- Temperature range: -25℃ to +80℃
- Housing material: PBT+GF (UL94 V-0 rated)
- Cable specification: 2m PVC cable, Ø3.5mm
- Wire gauge: 22 AWG (0.34mm²)
- Pressure resistance: 1MPa (10bar)
- Connection: M12×1 quick disconnect
- Protection rating: IP67 (dust/water resistant)
- Weight: 15g ±0.5g
- Dimensions: 12mm(W) × 12mm(D) × 34mm(H)
Compact magnetic proximity sensor with overmolded epoxy encapsulation for shock/vibration resistance. Features gold-plated reed contacts for 10^7 operations lifespan. Includes polarity protection and surge suppression. Compatible with ISO cylinder mounting grooves.
Implementation Scenarios:
- Pneumatic cylinder position feedback in assembly lines
- Door status detection in industrial machinery guards
- Material handling equipment limit switching
- Packaging machine jam detection systems
- Hydraulic press safety interlock circuits
Installation guidelines:
Mount sensor parallel to magnet path with ≤1mm air gap. Use shielded cable
when running parallel to high-voltage lines (>200V). Avoid installation in
strong magnetic fields (＞80kA/m). Perform sensitivity calibration after
mounting using indicator LED.
| Property | Property Value |
|---|---|
| sku | CS1MX020S32 |
