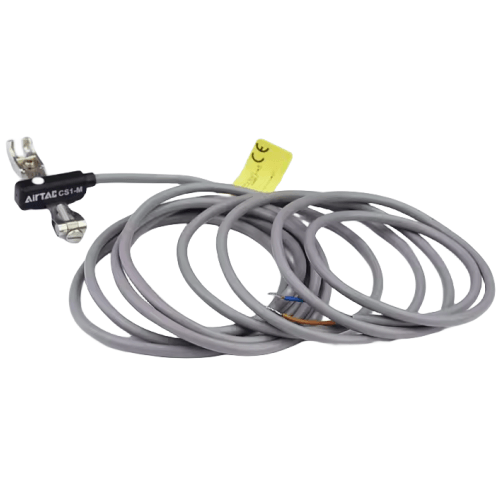

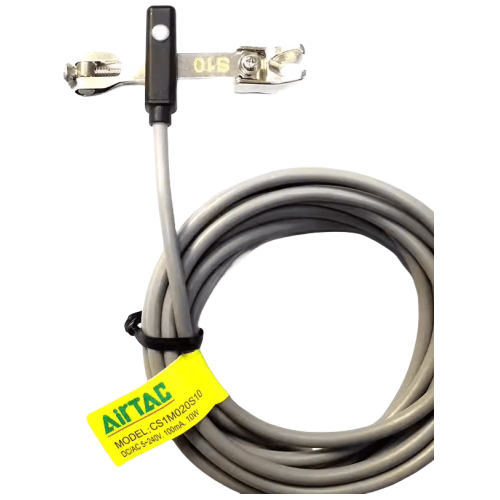

Airtac CS1MX Reed Sensor CS1MX020S50
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
AirTAC CS1MX020S50 Reed Sensor Technical Details
- Model: CS1MX020S50
- Type: Non-contact magnetic proximity sensor (Reed switch)
- Sensing distance: 2mm ±10%
- Output configuration: 2-wire normally open (NO)
- Supply voltage: DC 5-240V (wide voltage)
- Current consumption: ≤1.5mA
- Contact capacity: 200mA max (resistive load)
- Housing material: Stainless steel SUS304 + PBT plastic
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +70℃
- Response frequency: ≤200Hz
- Electrical life: ≥10⁷ operations
- Connection type: 2m PVC cable (standard) or M8 connector (optional)
- Weight: 80g ±5% (with cable)
- Dimensions: 30mm(L) × 15mm(W) × 8mm(H)
Compact magnetic proximity sensor with hermetically sealed reed switch technology. Features overvoltage protection and reverse polarity protection. The stainless steel housing provides excellent resistance to oil, cutting fluids, and mechanical impacts. Operates without physical contact, eliminating mechanical wear.
- Cylinder position detection in pneumatic systems
- Tooling machine safety interlocks
- Conveyor belt object presence sensing
- Elevator door position verification
- Automated packaging equipment sequencing
Installation guidelines:
Mount sensor parallel to magnet path with ≤2mm air gap.
Use shielded cables for EMI protection in industrial environments.
Avoid installation near strong magnetic fields or welding equipment.
| Property | Property Value |
|---|---|
| sku | CS1MX020S50 |
