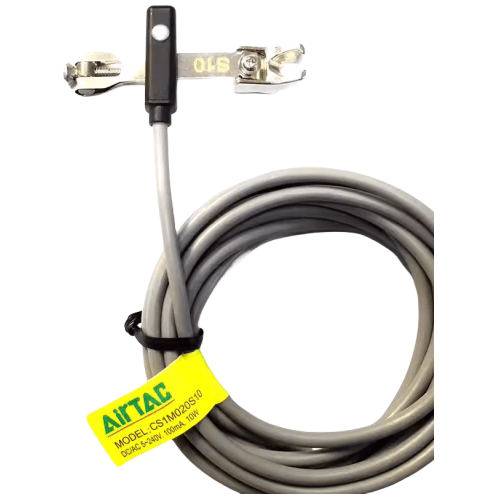

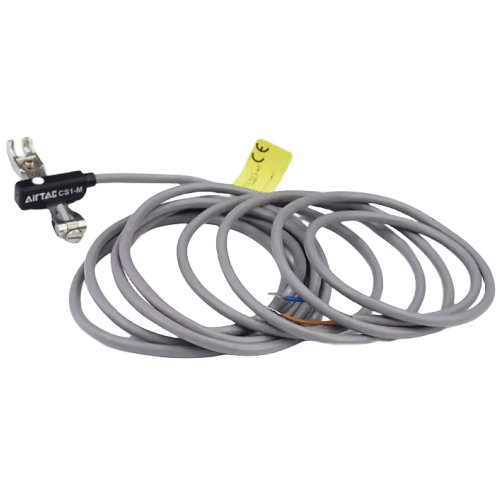

Airtac CS1MX Reed Sensor CS1MX030A50
2. This deceptively simple design ensures reliable circuit control in diverse industrial and commercial equipment applications, demonstrating exceptional switching stability across operational parameters.
AirTAC CS1MX030A50 Magnetic Reed Sensor Technical Specifications
- Model: CS1MX030A50
- Type: Non-contact magnetic reed switch
- Detection distance: 3mm ±10%
- Operating voltage: DC 5-240V (10-250V AC compatible)
- Output type: 2-wire NO (Normally Open)
- Wire length: 500mm (±50mm) PVC insulated cable
- Housing material: PBT resin (UL94 V-0 rated)
- Operating temperature: -25℃ to +70℃
- Protection class: IP67 (dust/water resistant)
- Response frequency: ≤100Hz
- Repeat accuracy: ±0.1mm
- Contact capacity: 100mA max
- Hysteresis: ≤15% of detection distance
- Weight: ~25g (excluding cable)
- Dimensions: 50mm(L) × 12mm(W) × 8mm(H)
Compact magnetic proximity sensor with hermetically sealed reed contacts, designed for precise position detection in pneumatic systems. Features reverse polarity protection and surge suppression, with epoxy resin encapsulation ensuring vibration resistance up to 30m/s². Operates without physical contact, eliminating mechanical wear.
- Cylinder piston position feedback in automation lines
- Conveyor system object detection
- Packaging machine safety interlocks
- Injection molding machine clamp position monitoring
- Elevator door position verification systems
Installation guidelines:
Mount parallel to magnet surface with ≤0.5mm alignment tolerance.
Maintain 1.5× detection distance from ferrous materials.
For optimal performance, use with AirTAC M-0615 series magnets.
| Property | Property Value |
|---|---|
| sku | CS1MX030A50 |
