Airtac CS1T Reed Switch Sensor CS1T030A32
2. This deceptively simple mechanism reliably governs circuit control in diverse industrial and commercial applications, demonstrating exceptional durability in harsh operating environments.

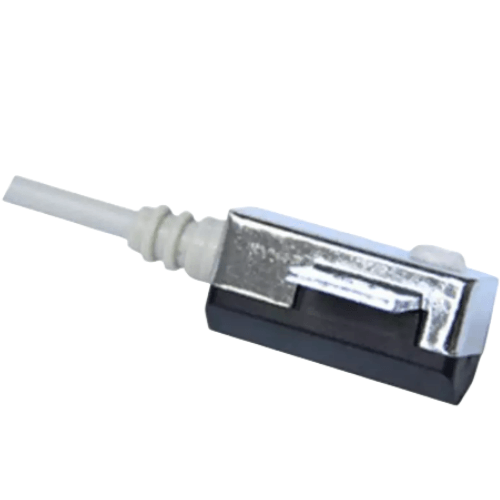

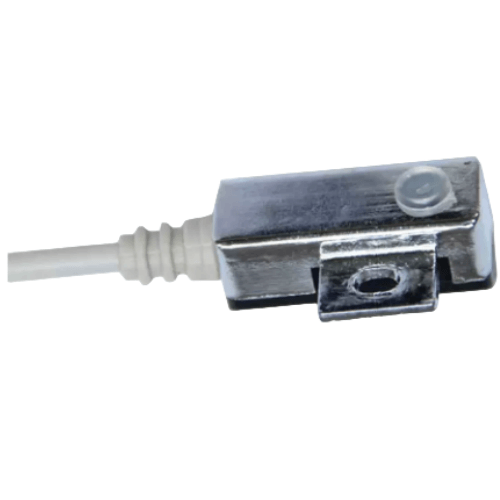

AirTAC CS1T Magnetic Reed Sensor CS1T030A32 Technical Details
- Model: CS1T030A32
- Type: Non-contact magnetic reed switch
- Detection method: Cylinder piston position sensing
- Detection distance: 3mm ±10%
- Output type: 2-wire normally open (NO)
- Voltage range: DC 5-240V (AC compatible)
- Max current: 100mA
- Leakage current: <0.8mA
- Response time: ≤1ms
- Housing material: Glass-filled PBT (UL94 V-0)
- Contact material: Rhodium-plated contacts
- Protection rating: IP67 (dust/water resistant)
- Temperature range: -25℃ to +80℃
- Vibration resistance: 10-55Hz (1.5mm double amplitude)
- Shock resistance: 1000m/s² (3 axes)
- Cable specification: 2m PVC cable (0.3mm² × 2C)
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 18.5mm(W) × 13.5mm(H)
- Mounting style: T-slot groove installation (compatible with ISO 6432 cylinders)
Compact magnetic proximity sensor with over-molded strain relief, designed for harsh industrial environments. Features gold-clad reed switch for reliable switching cycles (10⁷ operations). Built-in reverse polarity protection and status LED indicator. Compatible with all standard pneumatic cylinder magnetic pistons.
- Position feedback in pneumatic actuator systems
- Automated assembly line cylinder stroke detection
- Injection molding machine clamp position monitoring
- Material handling equipment end-of-travel sensing
- Packaging machine gripper status confirmation
Installation guidelines:
Mount sensor parallel to cylinder axis with ≤0.5mm gap between sensor and cylinder body.
Ensure magnetic piston passes within detection range. Use anti-vibration pad (AV-2 accessory)
in high-shock applications. Maximum cable bending radius: 25mm.
