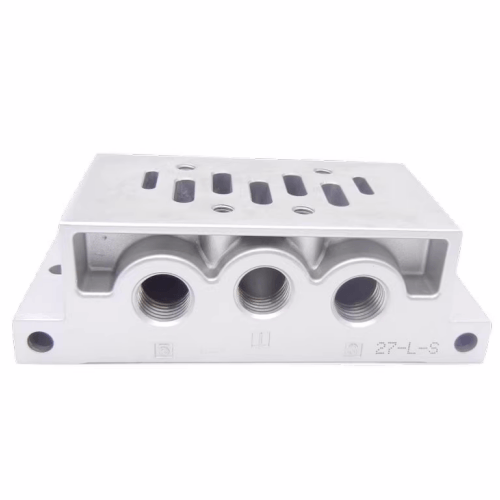

Airtac ESV-3 End Plate ESV403M
2. Mounting interface dimensions compliant with ISO 5599-1 international standards;
3. Incorporates dedicated sealing components for superior flow capacity and extended service life;
4. 200/300/400 Series enable interconversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of sealing elements;
5. Requires base mounting with options of single-unit or modular multi-unit bases, the latter allowing flexible combinations into any required number of stations;
6. Bases feature multiple pneumatic connection interfaces and installation configurations for enhanced adaptability;
7. 200/300/400 Series bases integrate exhaust throttling mechanisms, eliminating need for external flow control valves.
Category: End Plates | Brand: AirTAC | Series: ESV-3
AirTAC ESV-3 Series End Plate ESV403M Technical Details
- Model designation: ESV403M (ESV-3 series)
- Compatible cylinder bore: 40mm
- Material: Aluminum alloy 6063-T5
- Surface treatment: Hard anodized (25±3μm)
- Mounting hole pattern: 32mm × 32mm square
- Thread specifications: 4×M5×0.8 (depth 8mm)
- Weight: 0.25kg ±2%
- Dimensions: 40mm(L) × 40mm(W) × 10mm(H)
- Operating temperature: -20℃ to 80℃
- Surface hardness: ≥HV300
- Flatness tolerance: ≤0.05mm
- Corrosion resistance: 96hrs salt spray test passed
Precision-machined mounting plate with counterbore design for secure cylinder attachment. Features anti-vibration concentric circles (Ra3.2 finish) and oxidation-resistant coating. Includes integrated alignment pins (Ø4h7) for quick assembly. Compatible with ISO 15552 standard profiles.
- Linear actuator installations in CNC machinery
- Pneumatic clamping system foundations
- Automated conveyor belt tensioning mechanisms
- Packaging equipment cylinder mounting
- Robotic arm joint structural components
Installation protocol:
Use M5×20mm SHCS (socket head cap screws) with 4.4Nm torque specification.
Apply thread locker (medium strength) and clean mounting surface with IPA
before assembly. Avoid overtightening to prevent profile deformation.
| Property | Property Value |
|---|---|
| sku | ESV403M |
| Port Size | BSPT 3/4 |
