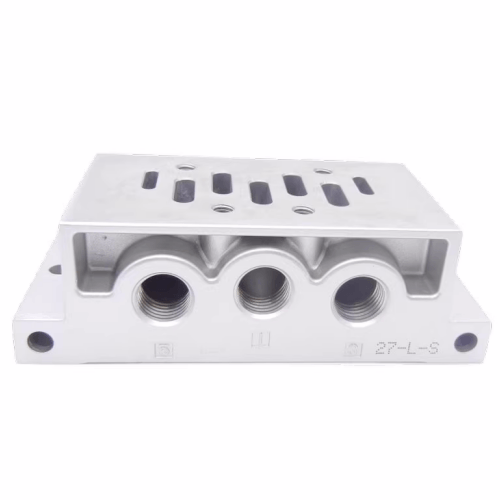

Airtac ESV-3 End Plate ESV603M
2. Mounting interface dimensions compliant with ISO 5599-1 international standards;
3. Incorporates dedicated sealing components for superior flow capacity and extended service life;
4. 200/300/400 Series enable interconversion between internal pilot, external pilot, and pneumatic control configurations through directional adjustment of sealing elements;
5. Requires base mounting with options of single-unit or modular multi-unit bases, the latter allowing flexible combinations into any required number of stations;
6. Bases feature multiple pneumatic connection interfaces and installation configurations for enhanced adaptability;
7. 200/300/400 Series bases integrate exhaust throttling mechanisms, eliminating need for external flow control valves.
Category: End Plates | Brand: AirTAC | Series: ESV-3
AirTAC ESV-3 End Plate ESV603M Technical Specifications
- Model: ESV603M
- Type: Modular end plate for ESV-3 series solenoid valve systems
- Material: Anodized aluminum alloy (AL6063-T5)
- Mounting type: Side-mount configuration
- Compatible series: ESV-3 solenoid valve groups
- Port size: G1/8 (ISO228/1 standard)
- Max operating pressure: 1.0 MPa
- Temperature resistance: -20℃ to 80℃
- Surface hardness: HV 120±5 (anodized layer)
- Weight: 0.25 kg ±5%
- Dimensions: 60mm(L) × 30mm(W) × 20mm(H)
- Thread depth: 10mm (for valve body connection)
- Sealing method: Integrated O-ring groove design
Structural component designed for multi-valve manifold assembly, featuring precision-machined flow channels and vibration-resistant mounting points. The anodized surface treatment enhances corrosion resistance in humid environments while maintaining thermal conductivity. Includes pre-installed NBR seals (Shore A 70±5) for immediate installation.
- Modular pneumatic control stations
- Industrial robotic arm pneumatic circuits
- Packaging machine valve clusters
- Food processing equipment manifolds
- Medical device pneumatic systems
Installation guidelines:
Apply 2-3Nm torque during valve body assembly. Use PTFE tape only on external pipe threads,
not on manifold connections. Clean compressed air (ISO 8573-1:2010 Class 2.4.2) required
for optimal performance.
| Property | Property Value |
|---|---|
| sku | ESV603M |
| Port Size | PT 1/8 |
