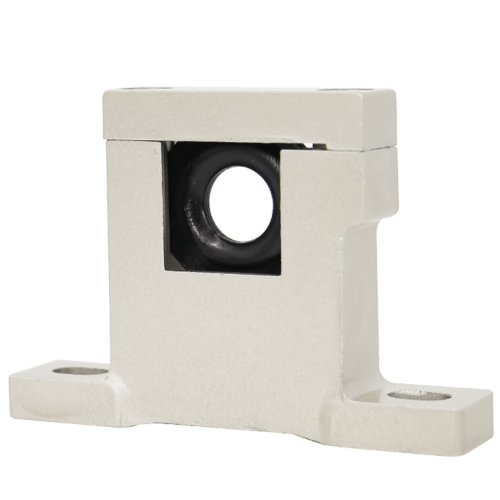

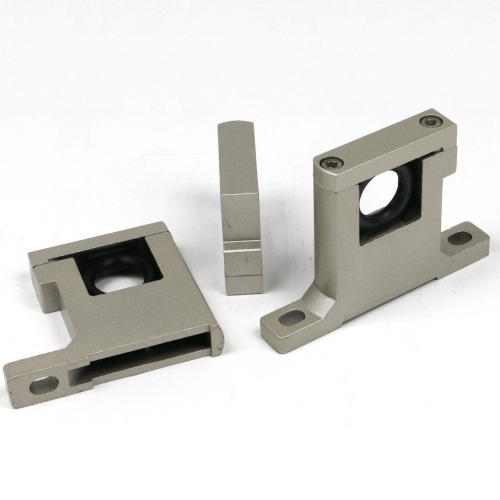

Airtac GA-P1 Bracket GA200U-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA200U-P1 Technical Specifications
- Model: GA200U-P1
- Type: Fixed-type cylinder mounting bracket
- Compatible cylinder bore: Ø20mm (standard series)
- Material: Aluminum alloy ADC12
- Mounting style: Dual-side through-hole fixation
- Surface treatment: Anodized finish (natural silver)
- Operating temperature: -20℃ to 80℃
- Max static load capacity: 1,200N (axial direction)
- Vibration resistance: 10-55Hz (1.5mm amplitude)
- Weight: 128g ±2%
- Dimensions: 52mm(L) × 34mm(W) × 25mm(H)
- Mounting hole spacing: 30mm ±0.2 (center-to-center)
- Fastener specification: M5×0.8 threaded holes (4 places)
- Surface hardness: HV 80-100
Precision-engineered mounting solution for SDA/MA-style pneumatic cylinders, featuring anti-loosening grooves and machined reference surfaces for alignment. The T-slot design allows 360° adjustable positioning while maintaining structural rigidity. Includes integrated dust channels to prevent particle accumulation in dynamic applications.
- Robotic end-effector mounting systems
- Precision-guided linear actuator assemblies
- Packaging machine gripper mechanisms
- CNC tool changer positioning units
- Semiconductor handling equipment
Installation protocol:
Apply 2.5-3.0N·m torque during fastener tightening. Use alignment jig
(PN: AJ-20P1) for multi-bracket configurations. Lubricate contact surfaces
with ISO VG32-grade oil before sliding adjustments.
| Property | Property Value |
|---|---|
| sku | GA200U-P1 |
