Airtac GA-P1 Bracket GA300T-P1
$10.45
Regular price
$17.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
GA300T-P1
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

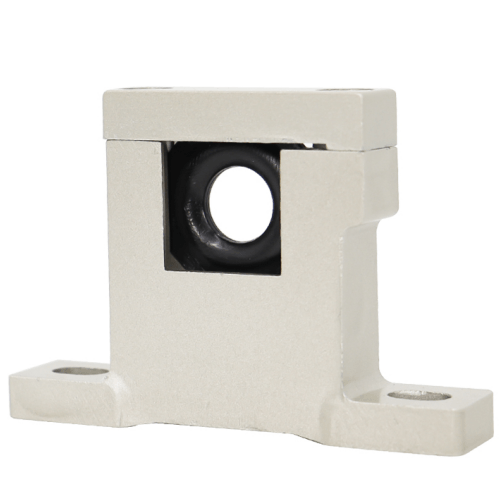

1. Installed between the G-Series pressure regulator (regulating filter) and G-Series lubricator, it branches the airflow into dual circuits - one circuit directs air to the lubricator for oil lubrication, while the other circuit supplies untreated air directly to downstream equipment.

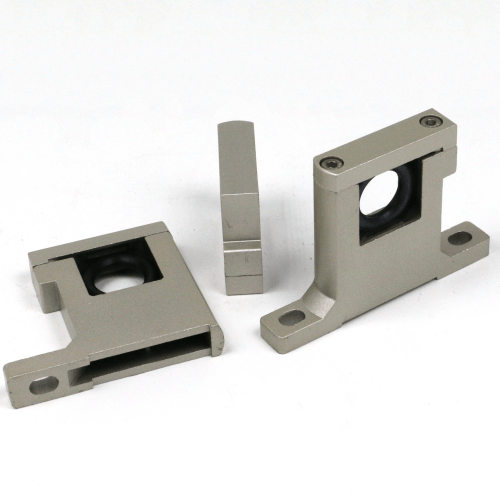

2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
Installation protocol:
Use torque-controlled wrench (recommended 5.5-6.5N·m for M6 fasteners).
Apply thread-locking compound on mounting screws. Thermal expansion compensation
required when operating above 60℃.
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA300T-P1 Technical Specifications
- Model: GA300T-P1 (GA-P1 series)
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized oxidation (black)
- Compatible cylinder series: MY1B, DYC, and MXS
- Mounting type: Side-mounting with dual-axis adjustment
- Weight: 0.45kg ±2%
- Dimensions: 300mm(L) × 30mm(W) × 20mm(H)
- Slot width: 8mm (for M6 mounting bolts)
- Maximum static load: 100kg (uniformly distributed)
- Dynamic load capacity: 35kg @ 0.5m/s² acceleration
- Operating temperature: -20℃ to 80℃
- Surface hardness: HV 150-180
- Vibration resistance: ≤15Hz @ 1.5mm amplitude
- Corrosion resistance: 96hrs salt spray test passed
- Compliance: RoHS 2011/65/EU
Heavy-duty extruded aluminum bracket designed for precision alignment in linear motion systems. Features T-slot design with 3-axis adjustability (±2mm lateral, ±1° angular) for fine-tuning cylinder positions. Includes pre-drilled mounting holes compatible with ISO 6432 standards.
Typical Applications:
- Robotic end-effector mounting in automotive assembly
- Precision positioning of pneumatic grippers
- Conveyor system guide rail supports
- Packaging machine vertical column reinforcement
- Semiconductor handling equipment structural framing
Installation protocol:
Use torque-controlled wrench (recommended 5.5-6.5N·m for M6 fasteners).
Apply thread-locking compound on mounting screws. Thermal expansion compensation
required when operating above 60℃.
| Property | Property Value |
|---|---|
| sku | GA300T-P1 |
