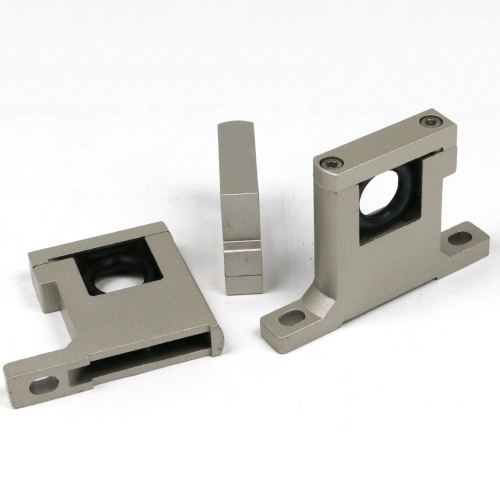

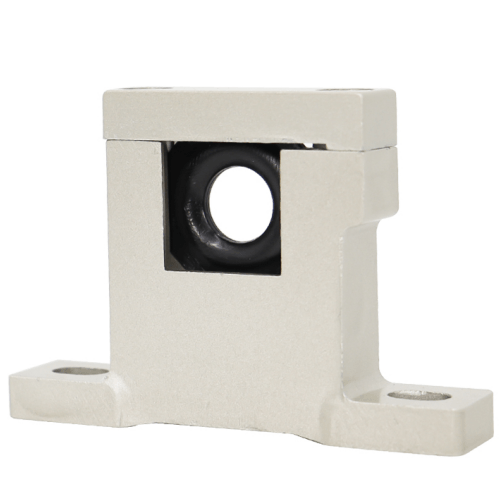

Airtac GA-P1 Bracket GA400T-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA400T-P1 Technical Specifications
- Model: GA400T-P1 (GA-P1 series)
- Type: Precision linear guide support block
- Material: Aluminum alloy ADC12
- Load capacity: Static 12kN / Dynamic 6.5kN
- Mounting hole pattern: M6×1.0 (M8 optional)
- Hole spacing: 60±0.02mm (longitudinal) × 40±0.02mm (lateral)
- Surface treatment: Anodized finish (black/silver optional)
- Operating temperature: -20℃ to 100℃
- Weight: 1.2kg ±3%
- Dimensions: 400mm(L) × 50mm(W) × 40mm(H)
- Parallelism tolerance: ≤0.02mm/100mm
- Flatness: ≤0.01mm
Heavy-duty support block with precision CNC-machined mounting surfaces, designed for SHS/SGS series linear guide rails. Features integrated oil grooves for lubrication maintenance and corrosion-resistant anodized coating. Pre-drilled holes accommodate both horizontal and vertical installations.
- High-speed CNC machine tool slides
- Automated material handling systems
- Semiconductor wafer transport mechanisms
- Packaging line linear actuators
- Robotic arm positioning systems
Installation note:
Use spring washers (M6: 6.4mm ID / M8: 8.4mm ID) with 1.2-1.5Nm torque.
Apply lithium-based grease in oil grooves every 500 operating hours.
| Property | Property Value |
|---|---|
| sku | GA400T-P1 |
