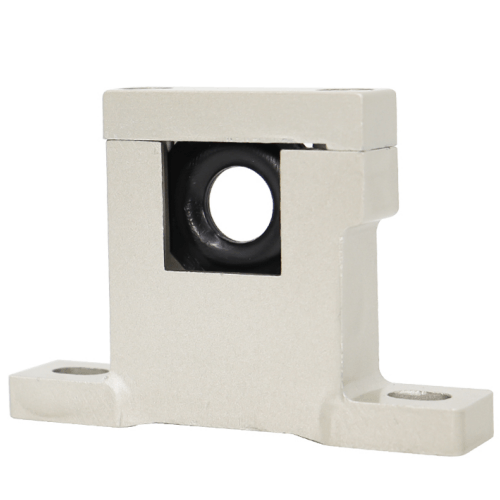

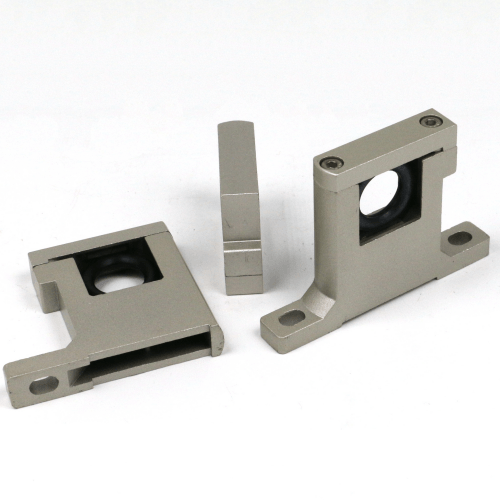

Airtac GA-P1 Bracket GA400U-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA400U-P1 Technical Specifications
- Model: GA400U-P1
- Type: Rail Mounting Bracket (U-shaped reinforced structure)
- Compatible Cylinder Bore: Ø40mm series cylinders
- Material: Aluminum alloy ADC12
- Mounting Style: DIN rail compatible (35mm width)
- Rail Type: TS35/7.5 or TS35/15
- Max Load Capacity: 12kg (static), 8kg (dynamic)
- Temperature Range: -20℃ to 80℃
- Surface Treatment: Anodized (black) with anti-corrosion coating
- Weight: 385g ±5g
- Dimensions: 148mm(L) × 52mm(W) × 32mm(H)
- Fastener Type: M6×12 stainless steel hex bolts (included)
- Vibration Resistance: ≤20Hz @ 2mm amplitude
Heavy-duty mounting solution designed for secure cylinder fixation in automated systems. Features precision-machined alignment grooves and dual reinforcement ribs for vibration dampening. The asymmetrical clamping design allows single-tool installation while maintaining 360° force distribution.
- Pneumatic cylinder mounting in pick-and-place robots
- Linear actuator support in conveyor systems
- Sensor bracket in packaging machinery
- Tooling fixture base in automotive assembly lines
- Vacuum generator mounting in electronic handling systems
Installation note:
Ensure rail surface cleanliness before mounting. Torque M6 bolts to 3.5-4.2N·m
using crisscross pattern. Apply thread locker for high-vibration environments.
- AirTAC SDA40× series cylinders
- Magnetic sensor slots for D-A93 series
- Optional rubber dampers (Part No.: GD-40R)
| Property | Property Value |
|---|---|
| sku | GA400U-P1 |
