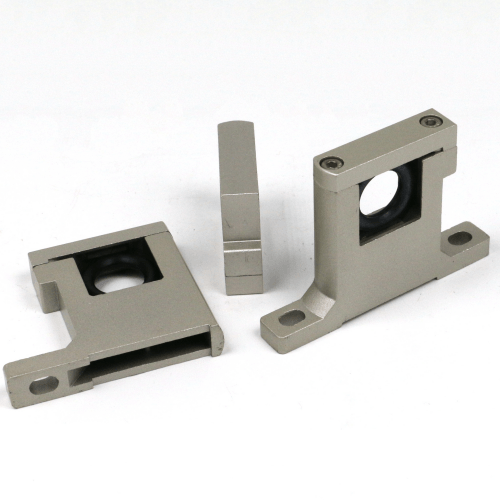

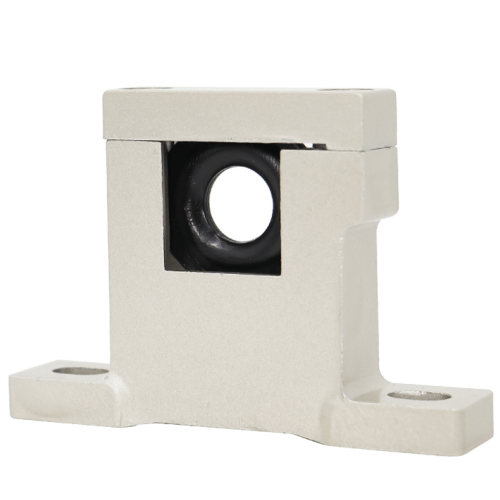

Airtac GA-P1 Bracket GA600T-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA600T-P1 Technical Details
- Model: GA600T-P1 (GA-P1 Series)
- Type: Universal mounting bracket for pneumatic cylinders
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized finish (silver)
- Compatible cylinder series: MAL, MA/MAL-S, MA/MAL-L standard cylinders
- Mounting orientation: Side/End mounting with multi-angle adjustment
- Weight: 220g ±5%
- Dimensions: 62mm(L) × 42mm(W) × 24mm(H)
- Load capacity: Max 50kg static load / 30kg dynamic load
- Mounting hole spacing: 50mm center-to-center (adjustable)
- Operating temperature: -20℃ to +80℃
- Mounting torque: 2.5-3 N·m (for M5 fasteners)
- Included hardware: 4x M5×10mm hex socket screws, 4x spring washers
Precision-engineered mounting solution featuring 3-axis adjustability for optimal cylinder alignment. The T-slot design enables 360° rotational positioning and ±5mm lateral adjustment. Anodized coating provides corrosion resistance in humid environments (up to 95% RH non-condensing). Includes vibration-dampening washers for industrial applications.
- Precision alignment in pick-and-place automation systems
- Multi-axis robotic arm joint mounting
- Conveyor system actuator installations
- Packaging machine tooling fixtures
- Semiconductor handling equipment
Installation protocol:
Apply thread-locking compound on fasteners for high-vibration environments.
Maximum recommended lateral offset: 1/3 of cylinder stroke length.
Use torque wrench for consistent clamping force distribution.
| Property | Property Value |
|---|---|
| sku | GA600T-P1 |
