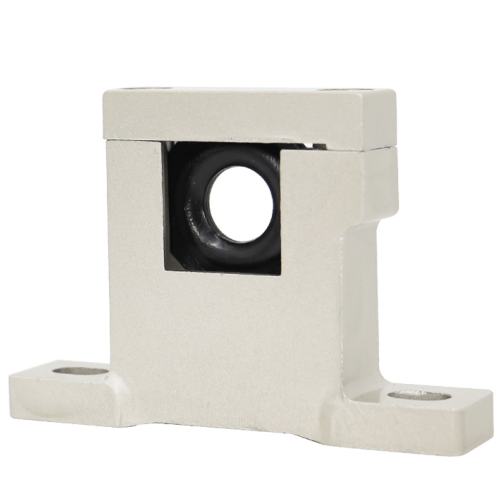

Airtac GA-P1 Bracket GA600U-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA600U-P1 Technical Specifications
- Model: GA600U-P1
- Type: Universal cylinder mounting bracket (P1 series)
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized
- Mounting hole spacing: 60±0.2mm (horizontal) × 40±0.15mm (vertical)
- Compatible cylinders: MAL/MALQ/MAQ series Ø6-32mm bore sizes
- Load capacity: 15kg static / 8kg dynamic
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: 96hr salt spray test compliant
- Weight: 0.28kg ±5%
- Dimensions: 72mm(L) × 42mm(W) × 22mm(H)
- Mounting screw specification: M5×0.8 thread pitch (included)
Precision-machined alignment bracket with vibration-damping design, featuring CNC-milled T-slot grooves for multi-position adjustment. The hardened contact surfaces (HRC 45±2) ensure secure cylinder fixation while preventing metal fatigue. Includes stainless steel mounting hardware with anti-loosening washers.
- Linear actuator installations in pick-and-place systems
- Pneumatic gripper mounting on collaborative robots
- Sensor bracket integration in automated packaging lines
- Modular fixture systems for automotive assembly
- Precision alignment in semiconductor handling equipment
Installation protocol:
Apply 0.5-0.7Nm torque during screw tightening. Use shim washers when mounting
on surfaces with >Ra3.2 roughness. Lubricate sliding surfaces with ISO VG32
hydraulic oil for smooth adjustment.
| Property | Property Value |
|---|---|
| sku | GA600U-P1 |
