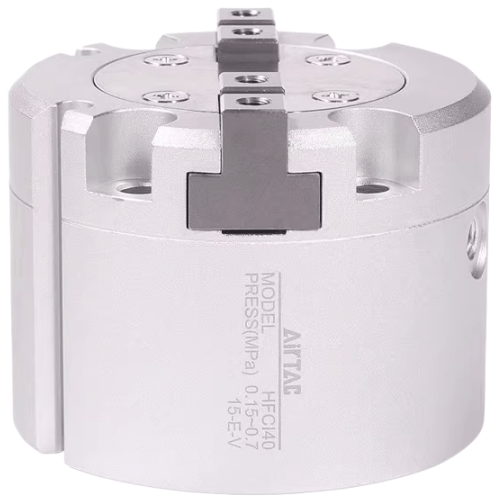

Airtac HFCI 2-Jaw Pneumatic Gripper HFCI20
2、Integrated anti-collision pad on piston front end effectively reduces metal-on-metal impact noise during jaw release;
3、Dowel pin holes at base ensure improved installation accuracy and consistent positioning during repeated disassembly/reassembly;
4、High repeatability (±0.01mm) in clamping operation ensures reliable performance for automated equipment integration;
5、Comprehensive range of series and specifications accommodates diverse workpiece geometries, meeting varied application requirements.
Category: Pneumatic Grippers , Brand: AIRTC , Series: HFCI
AirTAC HFCI20 Two-Jaw Pneumatic Gripper Technical Specifications
- Model: HFCI20-□-□ (Complete model varies by configuration)
- Type: Double-acting parallel gripper
- Bore size: Ø20mm
- Stroke options: 10mm/15mm/20mm (customizable)
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 94N at 0.5MPa
- Repeat accuracy: ±0.05mm
- Operating temperature: -10℃ to 70℃
- Weight: 0.52kg (standard stroke 10mm)
- Dimensions (L×W×H):
- 10mm stroke: 102×40×46mm
- 15mm stroke: 107×40×46mm
- 20mm stroke: 112×40×46mm
- Material: Aluminum alloy body, NBR seals
- Port size: M5×0.8 (1/8" NPT optional)
- Air consumption: 5.4cm³/stroke (10mm stroke)
- Load capacity: Max 2.5kg (depends on stroke length)
- IP rating: IP40 (higher available with optional boots)
High-precision parallel gripper featuring self-centering jaws and smooth linear motion. Optimized for rapid cycling (up to 3 cycles/sec) with hardened guide rods for wear resistance. Includes T-slot mounting and optional magnetic sensor grooves. Compatible with ISO 9409-1 mounting patterns.
- Robotic assembly lines for small parts handling
- PCB component insertion machines
- Pharmaceutical blister packaging systems
- Automotive fuel injector assembly
- 3C product testing equipment
Operation note:
Requires filtered air (5-50μm) with lubrication (ISO VG32 or equivalent).
For vertical installations, use locknut kits (sold separately) to prevent
piston drift. Avoid side loads exceeding 15N during operation.
- AJV series magnetic sensors (AJV115A compatible)
- Special jaw plates: V-groove, rubber-coated, vacuum compatible
- Heat-resistant variant (up to 120℃) with FKM seals
- Anti-corrosion version for cleanroom environments
| Property | Property Value |
|---|---|
| sku | HFCI20 |
| Operation Type | Double Acting |
| Gripper Optional Types | Two Claws |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
