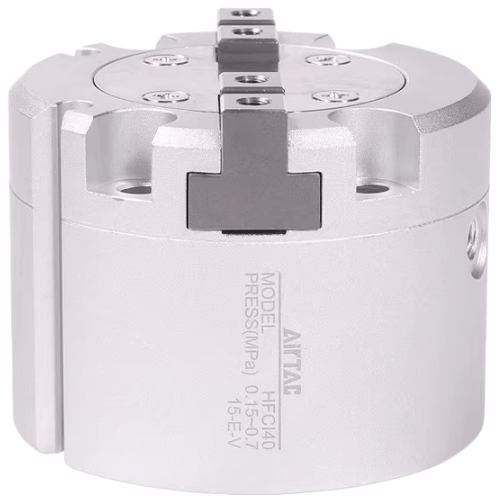

Airtac HFCI 2-Jaw Pneumatic Gripper HFCI63
2、Integrated anti-collision pad on piston front end effectively reduces metal-on-metal impact noise during jaw release;
3、Dowel pin holes at base ensure improved installation accuracy and consistent positioning during repeated disassembly/reassembly;
4、High repeatability (±0.01mm) in clamping operation ensures reliable performance for automated equipment integration;
5、Comprehensive range of series and specifications accommodates diverse workpiece geometries, meeting varied application requirements.
Category: Pneumatic Grippers , Brand: AIRTC , Series: HFCI
AirTAC HFCI63 Two-Jaw Pneumatic Gripper Technical Specifications
- Model: HFCI63
- Type: Parallel twin-jaw gripper (double piston rod)
- Gripping force: 160N @ 0.5MPa / 256N @ 0.8MPa
- Stroke per jaw: 0-12mm (adjustable)
- Operating pressure: 0.2-0.8 MPa
- Port size: M5 × 0.8 (standard) with G1/8 adaptor optional
- Repeat accuracy: ±0.02mm
- Body material: Anodized aluminum alloy (A6063)
- Jaw material: Hardened steel (HRC50±2)
- Seal material: NBR (nitrile) rubber
- Temperature range: -10℃ to 80℃ (operating), -20℃ to 100℃ (storage)
- Weight: 0.68kg (excluding accessories)
- Dimensions: 150mm(L) × 63mm(W) × 43mm(H)
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (ISO VG32 equivalent)
High-precision pneumatic parallel gripper featuring dual piston rod synchronization mechanism for symmetrical gripping force distribution. Optimized for high-cycle applications with tungsten carbide-coated guide rods preventing metal-to-metal abrasion. Includes 4x M5 threaded mounting holes (depth 8mm) on base plate for flexible installation.
- CNC machine tool part loading/unloading
- PCB component insertion systems
- Pharmaceutical blister packaging lines
- Automotive fuel injector assembly
- 3C product robotic handling (mobile phone components)
Installation guidelines:
Maintain 0.5-1mm clearance between jaws and workpiece during initial setup.
Requires 40μm filtered air with 1-3 drops/m³ oil mist lubrication for optimal seal life.
Max cycle rate: 3 cycles/sec with cushioning adjustment.
| Property | Property Value |
|---|---|
| sku | HFCI63 |
| Operation Type | Double Acting |
| Gripper Optional Types | Two Claws |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 63mm |
