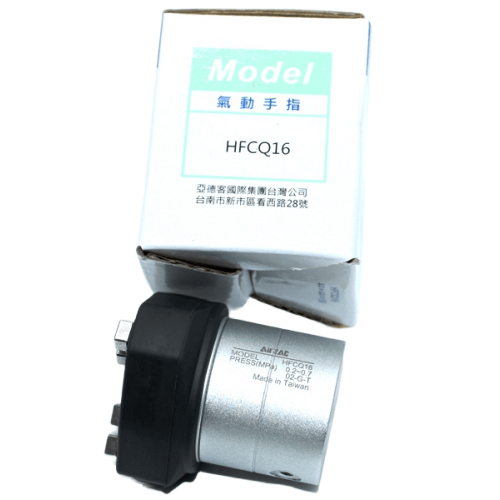

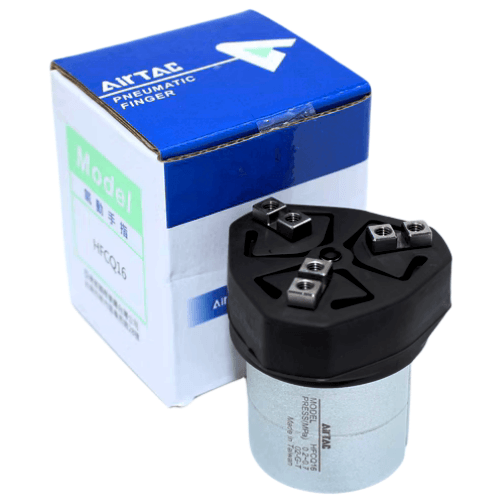

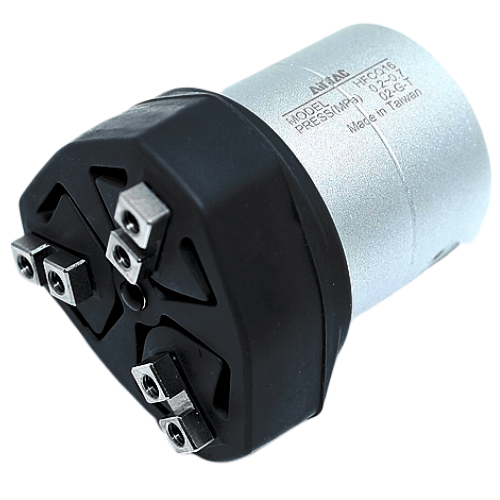

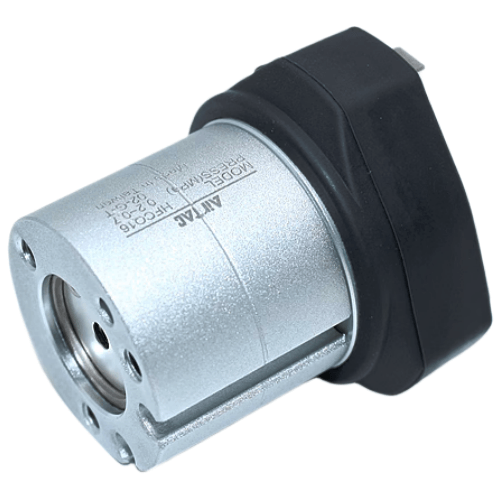

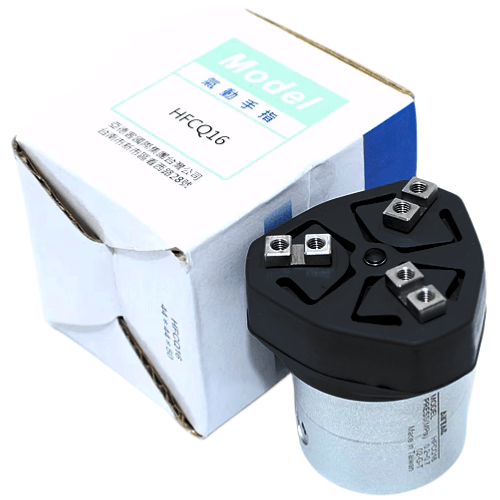

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ32E
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ32E Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ32E
- Type: Double-acting parallel gripper with hollow structure
- Bore size: Ø32mm
- Gripping force: 53N @0.5MPa / 106N @0.7MPa
- Stroke per finger: 10mm (Standard), 15mm (Optional)
- Operating pressure: 0.15–0.8 MPa
- Port size: M5×0.8 (Standard), NPT1/8 (Optional)
- Material: Aluminum alloy body, stainless steel guide rods
- Temperature range: -10℃ to 70℃
- Repeat accuracy: ±0.03mm
- Weight: 380g
- Dimensions: 120mm(L) × 42mm(W) × 34mm(H)
- Seal material: NBR (Nitrile rubber)
- Protection class: IP40
- Max operating speed: 200mm/s
HFCQ32E features a through-hole design (Ø12mm center bore) allowing internal routing of cables/sensors, making it ideal for cleanroom-compatible automation systems. Its precision-ground guide rods and optimized air chamber ensure smooth operation with minimal stick-slip effect. The symmetrical structure enables bi-directional mounting flexibility.
- Robotic end-effector tooling in PCB handling
- Medical device assembly with integrated vacuum pickup
- Optical component positioning systems
- Packaging line product orientation adjustment
- Automated test equipment with through-tool cabling
Installation note:
Maintain 0.5-1mm clearance between fingers and workpiece during initial setup.
Lubricate guide rods every 500,000 cycles using ISO VG32 turbine oil.
For vertical mounting, install air ports downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | HFCQ32E |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Cylinder Type Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <32 mm> |
