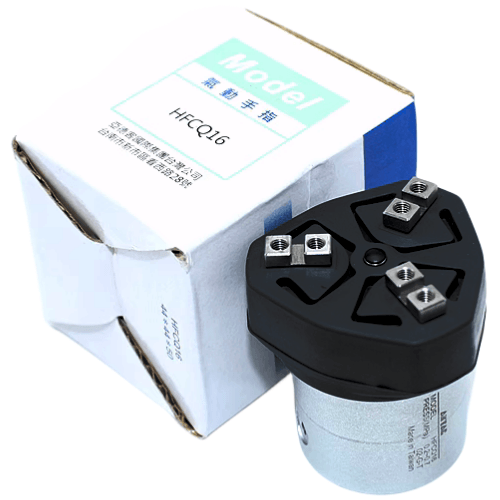

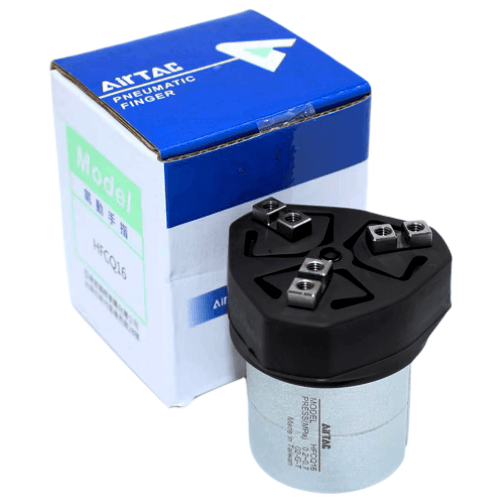

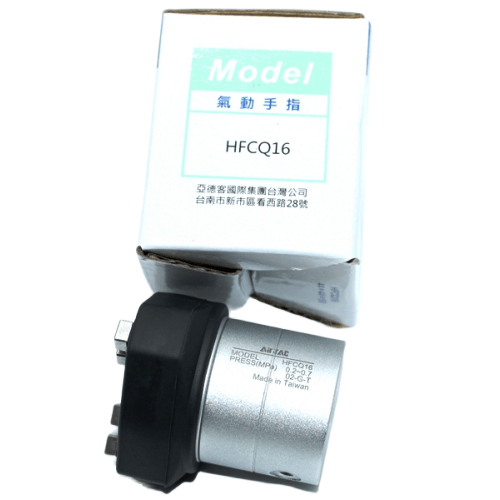

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ32V
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ32V Hollow Structure Pneumatic Finger Specifications
- Model: HFCQ32V
- Type: Hollow parallel gripper (double-acting)
- Action type: Dual slide rail structure
- Gripping force: 50N at 0.5MPa
- Stroke per jaw: 8mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 (1/8" NPT optional)
- Repeat accuracy: ±0.02mm
- Temperature range: -10℃ to 80℃
- Main material: Aluminum alloy body with NBR seals
- Weight: 0.65kg (bare gripper)
- Dimensions: 105mm(L) × 42mm(W) × 42mm(H)
- Central bore diameter: Ø12mm through-channel
- Max gripping speed: 100mm/s
- Mounting pattern: 32mm inter-hole spacing (M4 threaded)
High-precision hollow gripper designed for applications requiring internal component routing. Features symmetrical force distribution and T-slot mounting compatibility. The through-hole allows passage of cables, vacuum lines, or optical sensors while maintaining compact dimensions. Optimized for minimal inertial vibration during high-speed cycling.
- PCB handling with integrated vacuum pickup
- Collaborative robot end-effector tooling
- Automated assembly of tubular components
- Vision-guided sorting systems requiring internal wiring
- Medical device manufacturing with clean air pass-through
Installation note:
Maintain 0.5mm minimum clearance between jaw ends and workpiece during initial alignment.
Lubricate guide rails every 500,000 cycles using ISO VG32 hydraulic oil. Avoid lateral
impact forces exceeding 150N during operation.
| Property | Property Value |
|---|---|
| sku | HFCQ32V |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Spring-Loaded Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <32 mm> |
