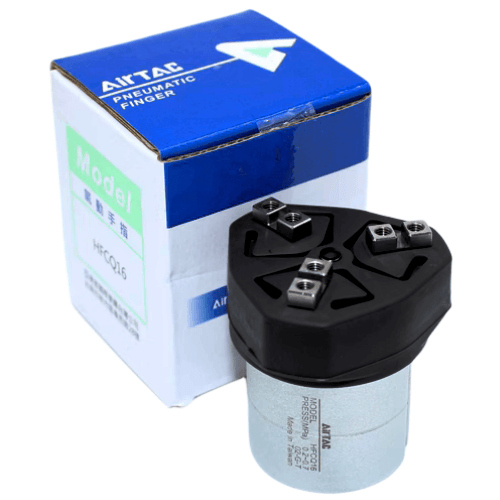

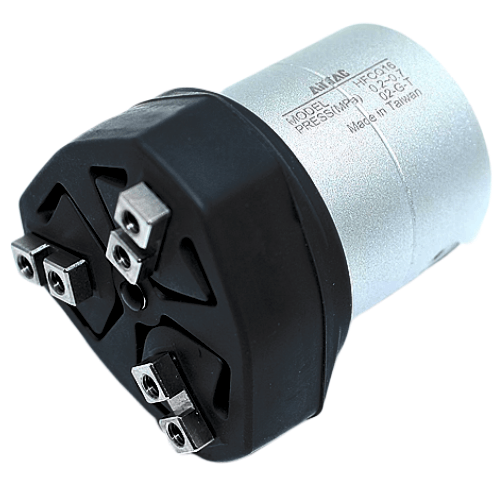

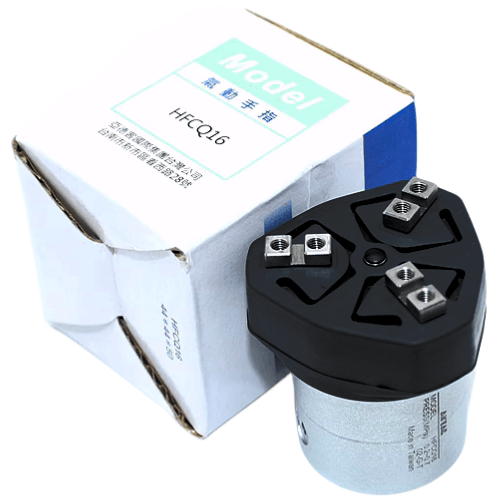

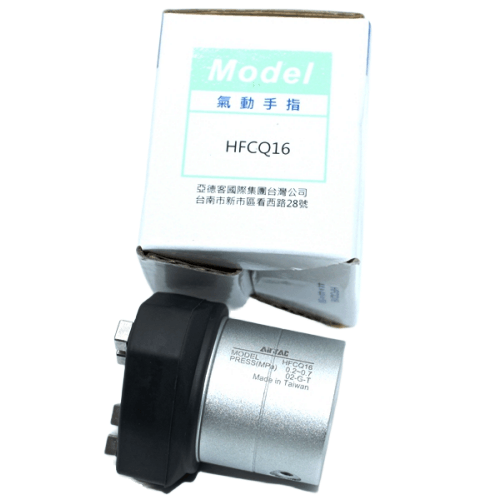

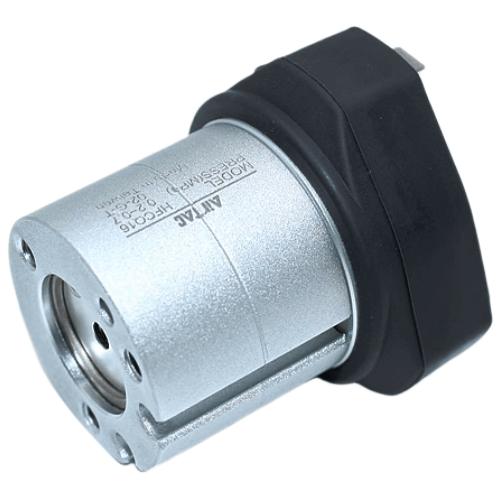

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ40
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ40 Hollow Cylinder Type Pneumatic Gripper Specifications
- Model: HFCQ40
- Type: Parallel gripper with hollow cylinder structure
- Clamping force: 180N (at 0.6MPa)
- Stroke per jaw: 0-15mm (adjustable)
- Operating pressure: 0.2-0.8 MPa
- Operation method: Double-acting (air pressure required for both opening/closing)
- Port size: M5 (standard), optional NPT1/8
- Repeat positioning accuracy: ±0.03mm
- Temperature range: -10℃ to 80℃
- Material: Aluminum alloy body, polyurethane seals
- Weight: 0.75kg (excluding accessories)
- Dimensions: 150mm(L) × 50mm(W) × 40mm(H)
- Surface treatment: Hard anodized finish
- Mounting options: 4x M4 threaded holes on base
- Max gripping speed: 100mm/s
- Air consumption: 33cm³/stroke (at 0.5MPa)
The HFCQ40 features a unique hollow center design allowing pass-through of cables/sensors, making it ideal for complex automation tasks requiring internal routing. Its precision-ground guide rails ensure smooth operation with minimal stick-slip effect, while the double piston design provides balanced clamping force. The wear-resistant polyurethane pads extend service life in high-cycle applications.
- Robotic arm end-effectors for electronics assembly
- CNC machine part loading/unloading systems
- Precision component positioning in optical device manufacturing
- Conveyor-based sorting mechanisms
- Medical device handling requiring cleanroom compatibility
Installation tip:
For optimal performance, maintain air supply pressure stability (±0.02MPa) and install
a mist separator when operating in humid environments. Lubricate guide rails with
ISO VG32 hydraulic oil every 500,000 cycles.
| Property | Property Value |
|---|---|
| sku | HFCQ40 |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
