Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ40E
$407.08
Regular price
$414.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFCQ40E
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

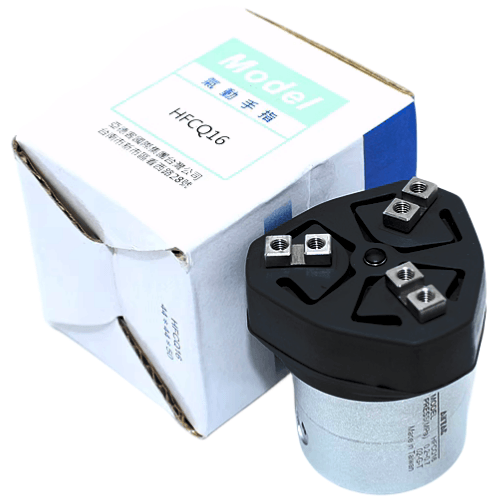

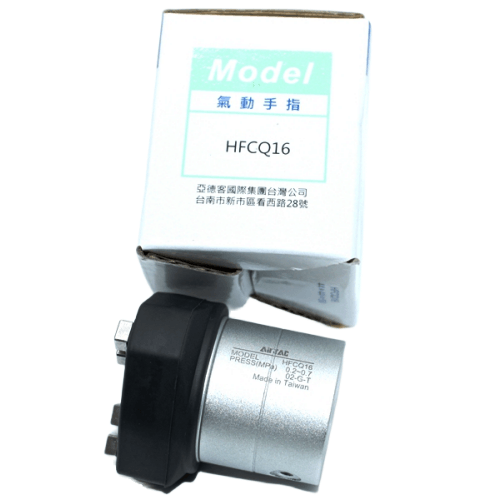

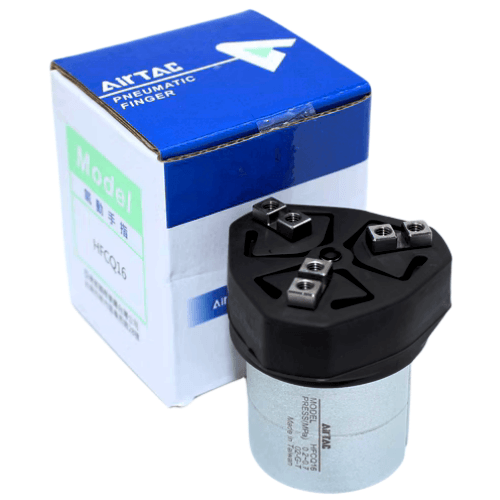

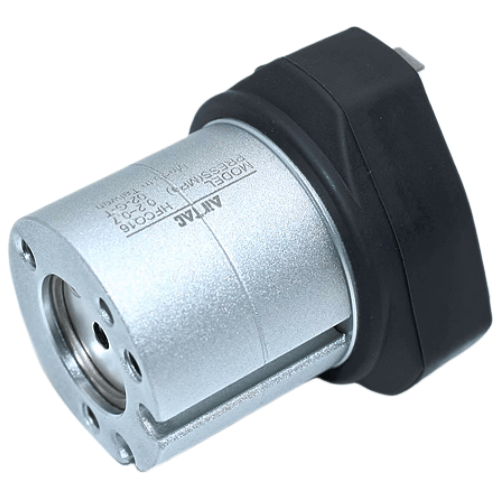

HFCQ Hollow-Type Pneumatic Gripper (AirTAC)
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
Operation note:
Requires 5-50μm filtered lubricated air (ISO 8573-1 class 4-4-3).
For vertical installations, use locking collars on guide rods.
Maximum cycle rate: 120 cycles/min with 0.3s opening/closing time.
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ40E Hollow Cylinder Type Gripper Specifications
- Model: HFCQ40E
- Type: Double-acting parallel gripper (hollow cylinder design)
- Bore size: Ø40mm
- Gripping force: 220N @ 0.5MPa
- Stroke per jaw: 0-8mm (adjustable)
- Operating pressure: 0.2-0.7 MPa
- Port size: M5 × 0.8 (standard) / NPT1/8 optional
- Repeat accuracy: ±0.02mm
- Material: Aluminum alloy body, polyurethane seals
- Temperature range: -10℃ to 80℃
- Weight: 1.25kg ±3%
- Dimensions: 130mm(L) × 68mm(W) × 50mm(H)
- Mounting pattern: ISO 9409-1-40-4-M6 (standard)
- Air consumption: 178cm³/stroke @ 0.5MPa
- Shock resistance: 15m/s² (max)
High-precision hollow center gripper with dual piston drive mechanism, featuring internal Ø12mm through-hole for cable/pipe routing. Hard-anodized surface treatment provides wear resistance in dusty environments. Integrated T-slot design allows modular accessory attachment.
Typical Applications:
- Robotic arm tool changers in automotive assembly
- PCB handling with vacuum suction integration
- Medical device packaging lines
- Battery cell transfer systems
- Optical lens polishing stations
Operation note:
Requires 5-50μm filtered lubricated air (ISO 8573-1 class 4-4-3).
For vertical installations, use locking collars on guide rods.
Maximum cycle rate: 120 cycles/min with 0.3s opening/closing time.
| Property | Property Value |
|---|---|
| sku | HFCQ40E |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Cylinder Type Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
