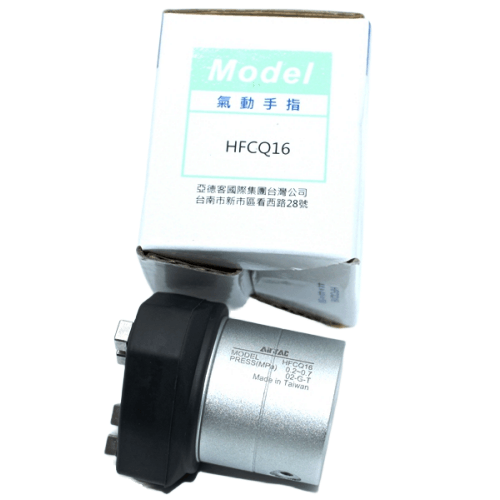

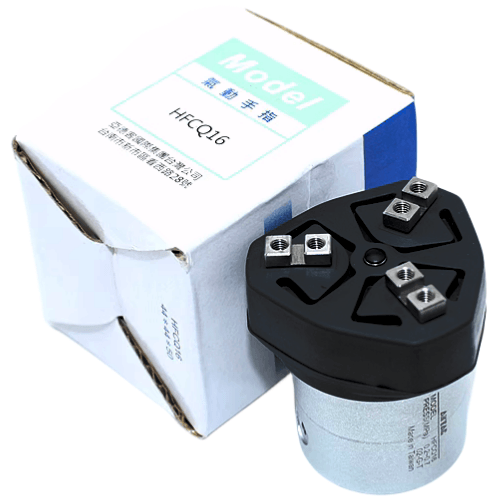

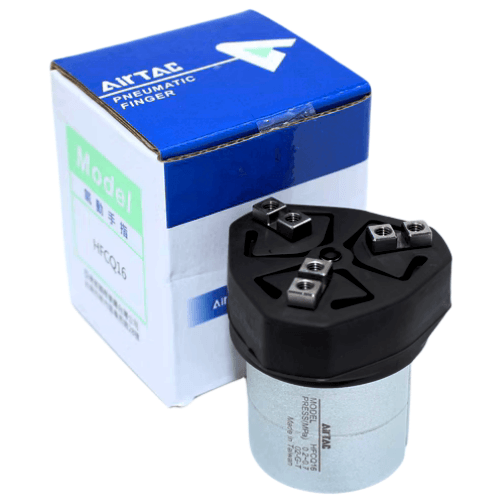

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ40V
$374.51
Regular price
$382.01
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFCQ40V
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
HFCQ Hollow-Type Pneumatic Gripper (AirTAC)
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
Installation note:
Requires 5-40μm filtered air supply. For vertical mounting applications,
use locking nuts on guide rods to prevent positional drift. Lubricate
sliding surfaces with ISO VG32 hydraulic oil monthly in high-cycle operations.
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ40V Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ40V
- Type: Parallel movement, hollow through-hole design
- Gripping force: 20-140N (adjustable via air pressure)
- Stroke per finger: 8mm
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 (1/8")
- Material: Anodized aluminum body, NBR seals
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.1mm
- Max operating speed: 100mm/s
- Protection rating: IP54
- Weight: 1.2kg ±5%
- Dimensions: 180mm(L) × 80mm(W) × 40mm(H)
Hollow center pneumatic gripper with through-hole (Φ40mm) for integrated sensor/wiring solutions. Features dual-acting cylinder design with adjustable gripping force via pressure regulation. Optimized for cleanroom-compatible operation with minimal particle generation.
Typical Applications:
- Robotic arm end-effectors in electronics assembly
- CNC machine part handling with central vacuum pickup
- Conveyor-based sorting systems
- Medical device manufacturing (cleanroom environments)
- Food packaging lines with integrated vision inspection
Installation note:
Requires 5-40μm filtered air supply. For vertical mounting applications,
use locking nuts on guide rods to prevent positional drift. Lubricate
sliding surfaces with ISO VG32 hydraulic oil monthly in high-cycle operations.
| Property | Property Value |
|---|---|
| sku | HFCQ40V |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Spring-Loaded Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
