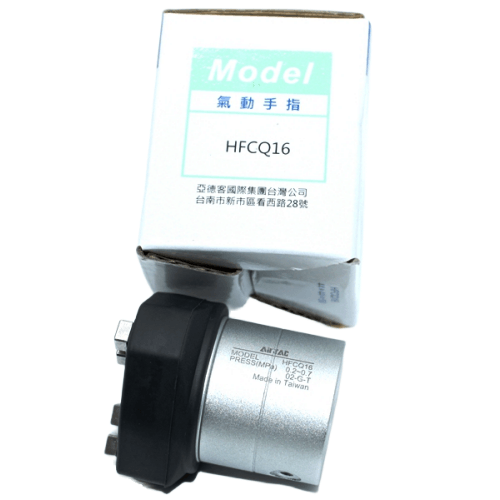

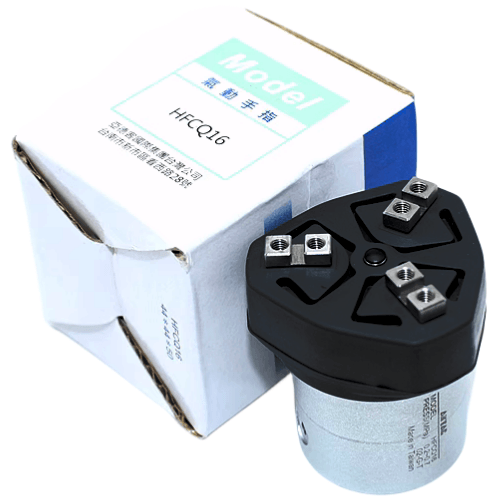

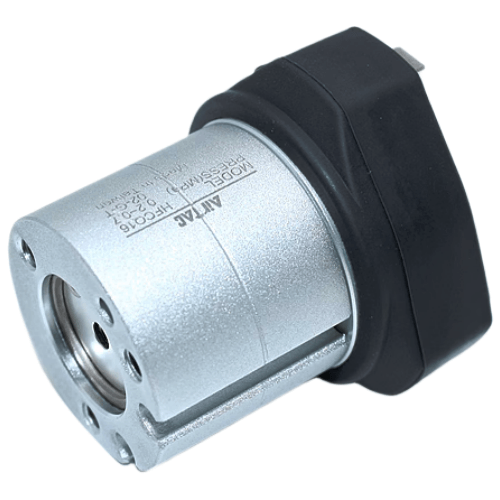

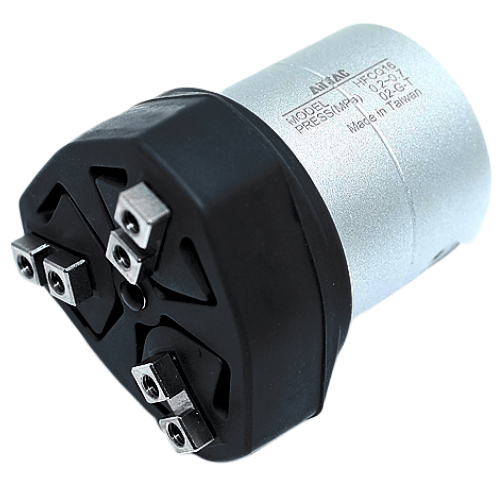

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ50
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ50 Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ50
- Type: Hollow through-hole parallel gripper (dual-acting)
- Gripping method: Parallel chucking with internal cable routing
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 50N (at 0.5 MPa)
- Stroke per jaw: 8mm
- Repeat accuracy: ±0.05mm
- Weight: 0.65kg (excluding accessories)
- Dimensions: 120mm(L) × 42mm(W) × 42mm(H)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (hydrogenated nitrile rubber)
- Temperature range: -10℃ to 80℃
- Air consumption: 12.5cm³/stroke
- Max operating speed: 100mm/s
- Cable pass-through: Ø8mm central hole
High-precision hollow gripper designed for applications requiring internal cable/sensor routing through the actuator. Features symmetrical force distribution and zero-backlash gear mechanism, with optional magnetic sensors for position feedback. The through-hole design allows vacuum suction or wiring through the center axis.
- Robotic PCB handling with integrated vacuum pickup
- Automated assembly of cylindrical components
- 3C industry part transfer with embedded sensors
- Medical device manufacturing requiring cleanroom compatibility
- Packaging lines with integrated air blow-off nozzles
Installation note:
Maintain ≤0.5mm alignment tolerance during mounting. Use M4×0.7 mounting screws
with 8.8 grade or higher. Lubricate sliding surfaces with ISO VG32 turbine oil
every 500,000 cycles in normal operation.
- Minimum air filtration: 40μm with auto-drain filter
- Max lateral load: 15N (perpendicular to gripping direction)
- Recommended maintenance interval: 5 million cycles
- Shock resistance: 50m/s² (10-200Hz vibration)
| Property | Property Value |
|---|---|
| sku | HFCQ50 |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <50mm> |
