Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ50E
$462.91
Regular price
$470.41
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFCQ50E
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

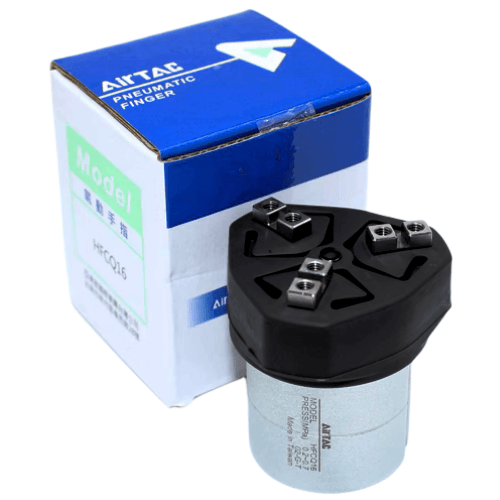

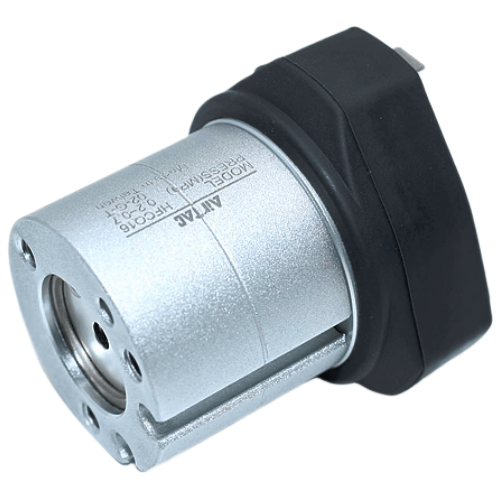

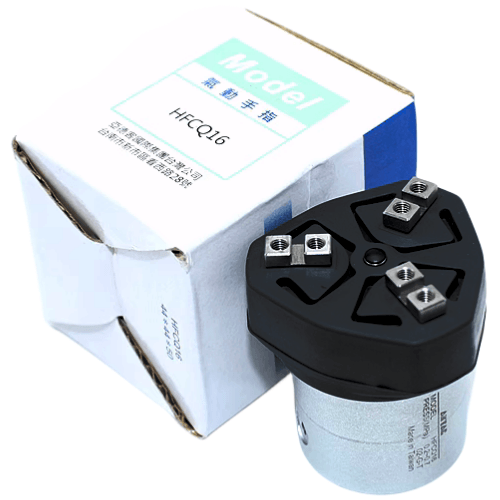

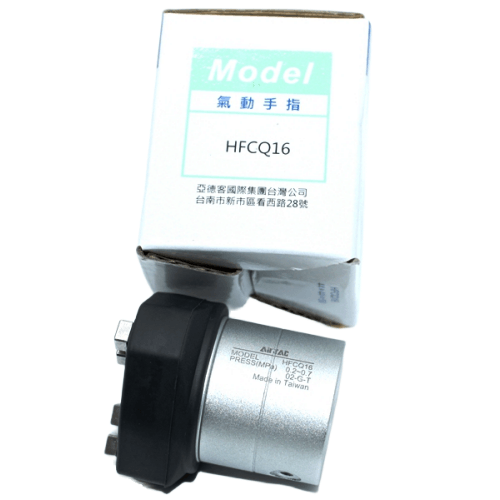

HFCQ Hollow-Type Pneumatic Gripper (AirTAC)
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
Installation tip:
Maintain 0.5-1mm clearance between jaw surfaces when fully closed for optimal grip adjustment.
Use locknuts on guide rods for position retention. Lubricate every 500,000 cycles with ISO VG32 hydraulic oil.
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ50E Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ50E
- Type: Parallel movement hollow cylinder gripper
- Bore size: Φ50mm
- Action mode: Double-acting
- Gripping force: 195N @0.6MPa
- Stroke per finger: 8mm (standard)
- Work pressure: 0.15–0.7 MPa
- Port size: M5x0.8 (standard), G1/8 optional
- Operating temperature: -10℃ to 80℃
- Material: Aluminum alloy body, NBR seals
- Repeat accuracy: ±0.1mm
- Response time: 50ms @0.5MPa
- Weight: 680g ±3%
- Dimensions: 120mm(L) × 50mm(W) × 42mm(H)
- Protection rating: IP54 (standard), IP67 optional
- Mounting: 4x M4 threaded holes on base
High-precision hollow center gripper with internal Ø16mm through-hole, enabling cable/pneumatic line routing through the actuator. Features guided piston structure with dual guide rods for enhanced stability under lateral loads. Compatible with vacuum cups and custom jaws.
Typical Applications:
- PCB handling in electronics assembly
- Bottle cap sorting with internal vacuum pickup
- Robotic welding gun integration
- Medical device component assembly
- Automated packaging line tool changers
Installation tip:
Maintain 0.5-1mm clearance between jaw surfaces when fully closed for optimal grip adjustment.
Use locknuts on guide rods for position retention. Lubricate every 500,000 cycles with ISO VG32 hydraulic oil.
Note:
Requires 5μm filtered air supply. Maximum lateral offset load: 15N.
Not recommended for continuous side-load applications exceeding 2 hours.
| Property | Property Value |
|---|---|
| sku | HFCQ50E |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | Cylinder Type Push Rod |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <50mm> |
