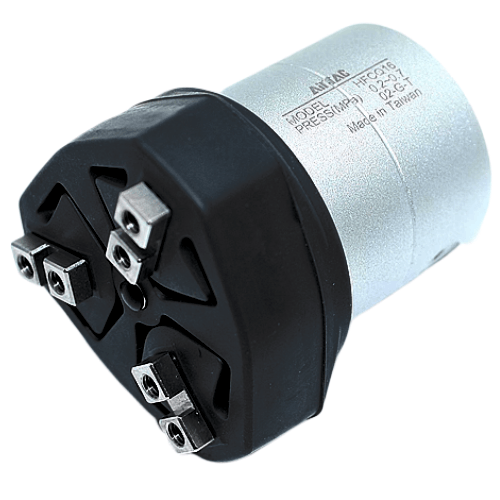

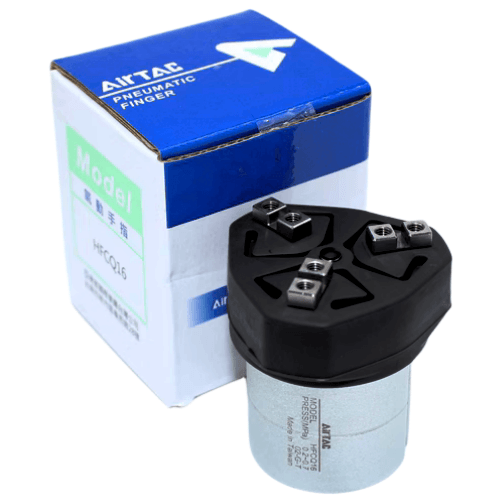

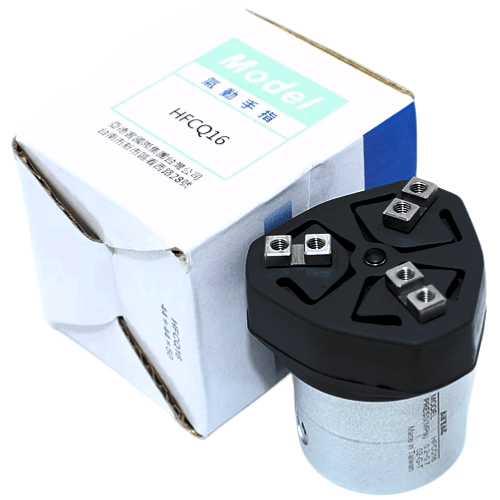

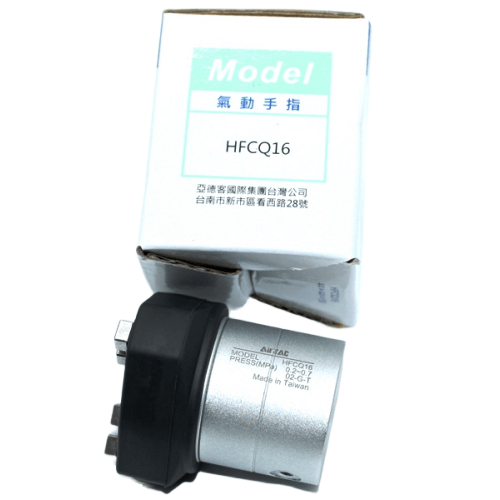

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ63

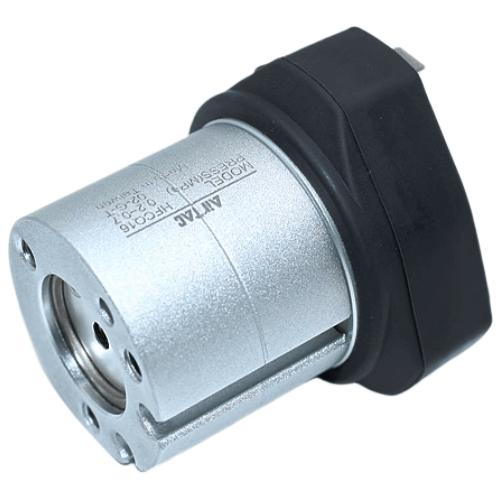

1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ63 Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ63
- Type: Hollow bore parallel gripper (double-acting)
- Bore size: Ø63mm (hollow center)
- Gripping force: 30-120N adjustable (at 0.6MPa)
- Operating pressure: 0.15–0.7 MPa
- Stroke per jaw: 15mm standard (20mm optional)
- Repeat accuracy: ±0.05mm
- Max gripping speed: 200mm/s
- Weight: 850g ±5%
- Dimensions: 150mm(L) × 72mm(W) × 63mm(H)
- Material: Aluminum alloy body, NBR seals
- Temperature range: -10℃ to 80℃
- Air consumption: 40cm³/stroke (at 0.5MPa)
- Mounting: Dual M5 threaded holes on both ends
High-precision hollow gripper with through-bore design for cable/wire routing, featuring adjustable gripping force and symmetrical force distribution. The T-slot guide mechanism ensures smooth parallel movement, ideal for handling fragile or irregularly shaped objects. Compatible with ISO 9409-1 mounting interfaces.
- PCB board handling with integrated vacuum pickup
- Bottle cap sorting systems requiring internal sensor access
- Robotic assembly of components with central cables/hoses
- Medical device manufacturing with cleanroom requirements
- 3C industry precision part transfer
Installation note:
Use M5x0.8 mounting screws with 8.8 grade or higher. For vertical mounting,
install air exhaust mufflers to prevent particle ingress. Lubricate guide rails
with ISO VG32 hydraulic oil during maintenance.
| Property | Property Value |
|---|---|
| sku | HFCQ63 |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 63mm |
