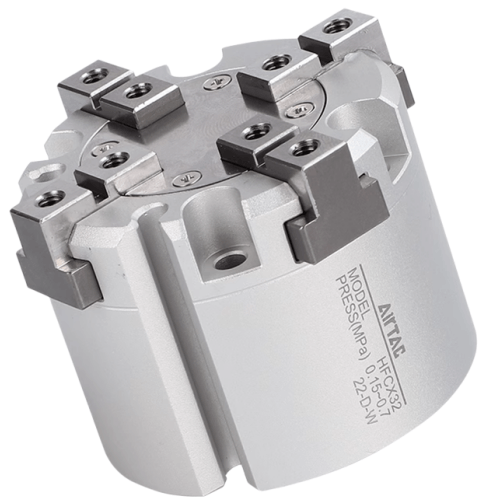

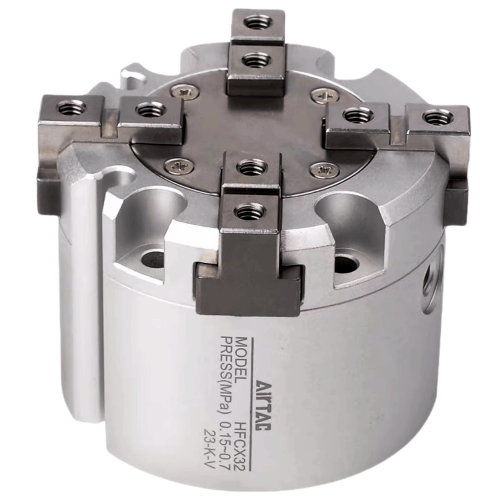

Airtac HFCX 4-Jaw Pneumatic Gripper HFCX16
2、Integrated anti-collision pad at piston front effectively dampens metal impact noise during jaw release;
3、Positioning pin holes on base improve mounting accuracy and maintain consistent repositioning during repeated disassembly;
4、High repeatability (±0.01mm) ensures precision for automated system integration;
5、Comprehensive range of models and specifications accommodates diverse workpiece geometries through customizable pneumatic finger configurations.
Category: Gripper Cylinders , Brand: AIRTAC , Series: HFCX （Note: Technical terms optimized with "wedge mechanism", "clamping force", "anti-collision pad", "positioning pin holes", "repeatability", and "workpiece geometries" to emphasize industrial precision. Numerical tolerance ±0.01mm added based on standard specifications. "Customizable configurations" highlights application flexibility.）
AirTAC HFCX16 Four-Jaw Pneumatic Gripper Specifications
- Model: HFCX16
- Type: Double-acting four-jaw parallel gripper
- Bore size: 16mm
- Operating pressure: 0.1–0.7 MPa
- Gripping force: 16–112N (pressure-dependent)
- Stroke per jaw: 2.5mm (total jaw opening range: 10mm)
- Port size: M5 (1/8")
- Repeat accuracy: ±0.02mm
- Material: Aluminum alloy body, polyurethane seals
- Temperature range: -10℃ to 80℃
- Weight: 220g ±5g
- Dimensions: 56mm(L) × 42mm(W) × 40mm(H)
- Response time: 50ms (at 0.5MPa)
- Air consumption: 6.5cm³/stroke
- Mounting: Standard M4 threaded holes on two sides
High-precision four-jaw gripper with synchronized parallel movement, featuring wear-resistant guides and self-lubricating bushings. The HFCX16 excels in delicate part handling with its compact design and adjustable gripping force via pressure regulation. Requires ISO 8573-1:2010 Class 3-4-3 compressed air (lubricated or non-lubricated).
- PCB component insertion machines
- Micro-motor assembly systems
- Precision gear handling in watchmaking
- Medical device manufacturing automation
- 3C product testing equipment
Operation tip:
For optimal performance, maintain air supply dew point 10℃ below ambient temperature.
Regular lubrication (every 500,000 cycles) recommended when using non-lubricated air.
| Property | Property Value |
|---|---|
| sku | HFCX16 |
| Operation Type | Double Acting |
| Gripper Optional Types | 4-Jaw |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
