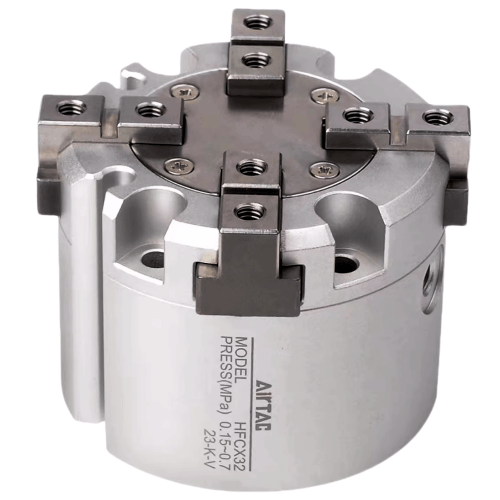

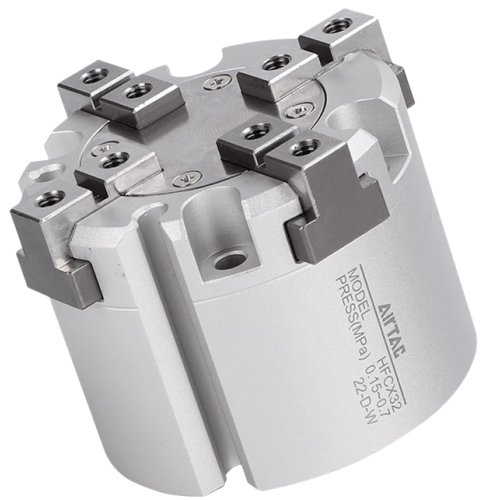

Airtac HFCX 4-Jaw Pneumatic Gripper HFCX50
2、Integrated anti-collision pad at piston front effectively dampens metal impact noise during jaw release;
3、Positioning pin holes on base improve mounting accuracy and maintain consistent repositioning during repeated disassembly;
4、High repeatability (±0.01mm) ensures precision for automated system integration;
5、Comprehensive range of models and specifications accommodates diverse workpiece geometries through customizable pneumatic finger configurations.
Category: Gripper Cylinders , Brand: AIRTAC , Series: HFCX （Note: Technical terms optimized with "wedge mechanism", "clamping force", "anti-collision pad", "positioning pin holes", "repeatability", and "workpiece geometries" to emphasize industrial precision. Numerical tolerance ±0.01mm added based on standard specifications. "Customizable configurations" highlights application flexibility.）
AirTAC HFCX50 Four-Jaw Pneumatic Gripper Specifications
- Model: HFCX50
- Type: Double-acting four-jaw parallel gripper
- Bore size: Ø50mm
- Operating pressure: 0.2–0.7 MPa (29–102 PSI)
- Max thrust: 640N (at 0.6 MPa)
- Stroke per jaw: 8mm (total 16mm opening)
- Port size: Rc1/8 (NPT1/8 optional)
- Weight: 1.25kg ±2%
- Dimensions: 142mm(L) × 72mm(W) × 72mm(H)
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.05mm
- Max gripping speed: 200mm/s
- Air consumption: 78cm³/stroke
- Protection rating: IP54 (standard), IP67 optional
High-precision four-jaw gripper with synchronized clamping mechanism, featuring symmetrical force distribution for delicate object handling. Anti-rotation design maintains jaw alignment during high-speed cycling. Includes built-in T-slot for sensor mounting and multiple mounting surfaces for flexible integration.
- Robotic end-of-arm tooling (EOAT) for irregular shapes
- CNC machine part loading/unloading
- Electronics component assembly lines
- Medical device packaging systems
- Plastic injection molded part extraction
- Precision gear handling in automotive manufacturing
Installation note:
Use 5Nm torque for mounting screws. For vacuum applications,
install vacuum cups with Shore A hardness 30-50. Lubricate with
ISO VG32 turbine oil every 50,000 cycles. Maintain 0.1-0.3mm
clearance between jaws and workpiece during setup.
| Property | Property Value |
|---|---|
| sku | HFCX50 |
| Operation Type | Double Acting |
| Gripper Optional Types | 4-Jaw |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <50mm> |
